System Diagnostic Mode: Version
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

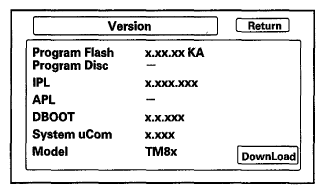

This screen displays the current version information for the navigation system software. In addition, this screen allows the loading of updated software if requested by the factory, or instructed by a Service Bulletin. Software may be loaded from a CD or a PC card.
- Program Flash: Displays the version of the navigation software in memory.
- Program Disc: If displayed, this value represents the version of the navigation software on the navigation DVD.NOTE: The last two letters of the Program Flash or DVD fields indicate which DVD is installed in the unit. The letters KA imply that a United States DVD is installed. If the letters are KC, then a Canada DVD is installed. (See coverage discussion below.)
- IPL, APL, DBOOT, and System uCom, are all for factory use.
- Model: For this model, the field should begin with TM8.
- Download: Do not touch, unless instructed by the factory.
Check any official Honda service website for more service information about navigation DVDs.
The navigation system uses a turquoise disc that is for the US market and contains maps for the contiguous 48 US states, and some southern portions of Canada. Customers wanting additional northern coverage in Canada, can purchase a Canada DVD by contacting the DVD fulfillment desk.
