Voice Control Switch Replacement

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS component location (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) in the SRS section before doing repairs or service.

Remove the steering wheel (see STEERING WHEEL REMOVAL ).
Remove the audio remote switch (see AUDIO REMOTE SWITCH REPLACEMENT ).

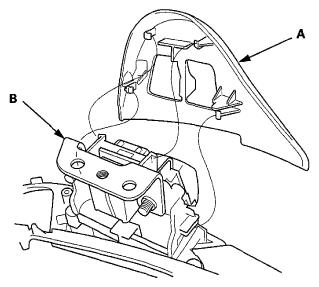

Remove the switch cover (A) from the HFL-navigation voice control switch (B).

Fig 1: Identifying HFL-Navigation Voice Control Switch And Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

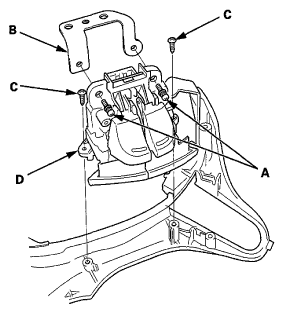

Remove the screws (A), and remove the set plate (B).

Fig 2: Identifying Set Plate And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screws (C), and remove the HFL-navigation voice control switch (D).
Install the HFL-navigation voice control switch in the reverse order of removal.
