A/T Gear Position Indicator Panel Replacement

NOTE: Do not wipe off the grease that is applied to the portion of the shift lever marked with an asterisk (*) when you disassemble or assemble It because a special grease is used.
  1. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  2. Apply the parking brake, and move the shift lever to N.

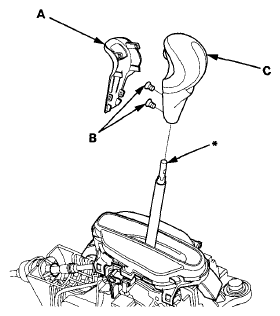

  3. Wrap the end of a thin blade screwdriver with tape, pry the shift lever knob cover (A), and remove it.
    Fig 1: Identifying Shift Lever Knob Cover And Screws
    G08093315Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the screws (B) and the shift lever knob (C).

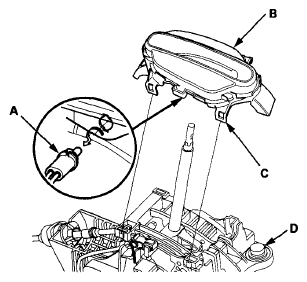

  5. Remove the A/T gear position indicator panel light socket (A).
    Fig 2: Removing A/T Gear Position Indicator Panel Light Socket
    G08093316Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Wrap the end of a thin blade screwdriver with tape, and pry up the A/T gear position indicator panel (B) by releasing the four locks (C) from the shift lever bracket base (D).

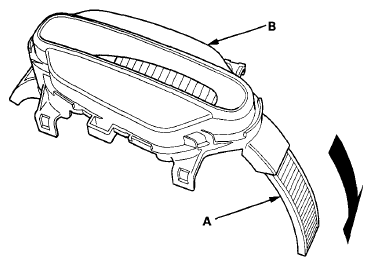

  7. Remove the lever cover (A) from the A/T gear position indicator panel (B).
    Fig 3: Removing Lever Cover From A/T Gear Position Indicator Panel
    G08093317Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Check the lever cover for wear and damage, and replace it if necessary.
  9. Install the lever cover to the new A/T gear position indicator panel.

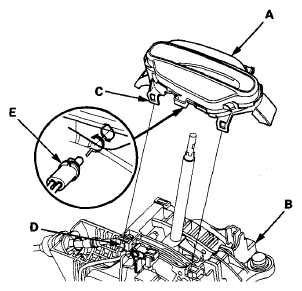

  10. Install the A/T gear position indicator panel (A) to the shift lever bracket base (B), and push the locks (C) to the hooks (D) securely.
    Fig 4: Installing A/T Gear Position Indicator Panel To Shift Lever Bracket Base
    G08093318Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Install the A/T gear position indicator panel light socket (E).

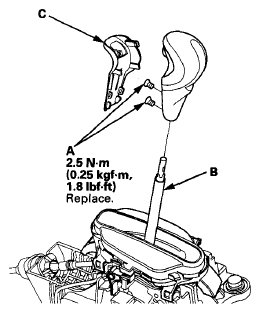

  12. Install new screws (A) to secure the shift lever knob to the shift lever (B).
    Fig 5: Shift Lever Knob And Screws With Torque Specifications
    G08093319Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Install the shift lever knob cover (C) by pushing the shift lever knob cover onto the shift lever knob securely.
  14. Install the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
