CVT Clutch Pressure Control Solenoid Valve Replacement

Remove the lower valve body (see LOWER VALVE BODY REMOVAL/INSTALLATION ).
Disconnect the CVT clutch pressure control solenoid valve 2P connector (A).

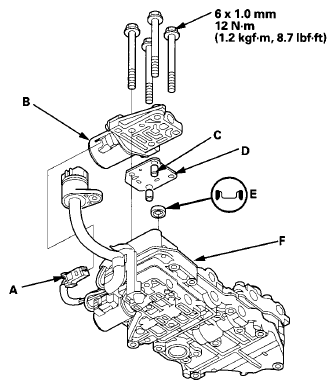

Fig 1: CVT Clutch Pressure Control Solenoid Valve 2P Connector, Pins And Separator Plate With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the CVT clutch pressure control solenoid valve (B), the dowel pins (C), and the separator plate (D).
Check that the filter (E) is in good condition, replace it if it is clogged or damaged.
Install a new CVT clutch pressure control solenoid valve with the dowel pins and the separator plate on the lower valve body (F).
Connect the CVT clutch pressure control solenoid valve 2P connector.
Install the lower valve body (see LOWER VALVE BODY REMOVAL/INSTALLATION ).
