CVT Drive Pulley Pressure Control Solenoid Valve Removal/Installation

Remove the solenoid wire harness clamp (A).

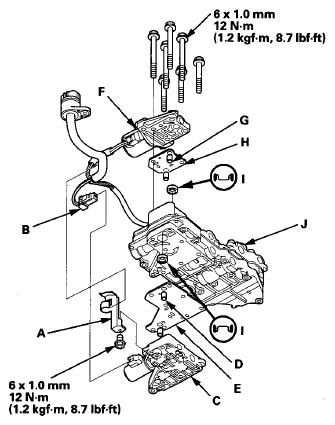

Fig 1: CVT Drive Pulley Pressure Control Solenoid Valve And Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the CVT drive pulley pressure control solenoid valve 2P connector (B).
Remove the seven bolts, and remove the CVT drive pulley pressure control solenoid valve (C), the dowel pins (D), and the separator plate (E). The CVT clutch pressure control solenoid valve (F), the dowel pins (G), and the separator plate (H) can also be removed.
Check that the filters (I) are in good condition, replace them if these are clogged or damaged.
Install the CVT drive pulley pressure control solenoid valve with the two dowel pins, the separator plate, the CVT clutch pressure control solenoid valve with the two dowel pins, and the separator plate on the lower valve body (J).
Connect the CVT drive pulley pressure control solenoid valve 2P connector.
Install the solenoid wire harness clamp.
