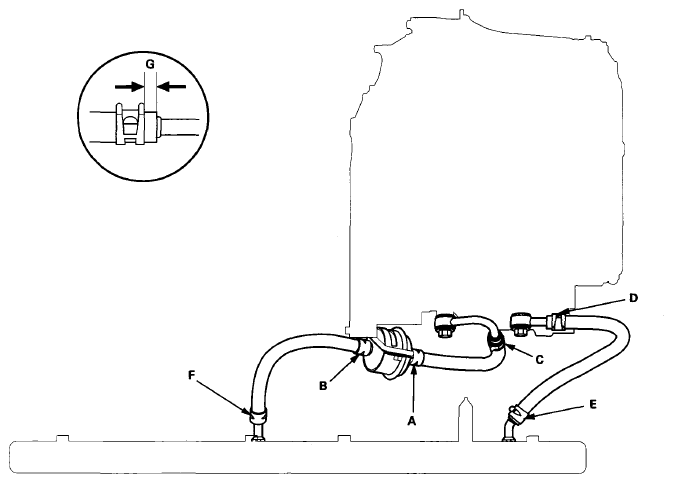

Exploded View
NOTE:
When installing the hose clamps, make sure they do not interfere with the surrounding parts.
- Install the CVTF cooler hoses over the CVTF cooler lines with the clips at appropriate points in reference to the following list.
Point Distance from Hose End to Clip (G) Hose End Contact Point A 6-8 mm (0.24-0.31 in) CVTF Filter B C 6-8 mm (0.24-0.31 in) Bulge D HI 2-4 mm (0.08-0.16 in) Bulge F - Refill the transmission with CVTF to the proper level (see step 8).
