CVTF Filter Replacement

Remove the splash shield (see SPLASH SHIELD REPLACEMENT ).
Remove the drain plug (A), and drain the CVT fluid (CVTF).

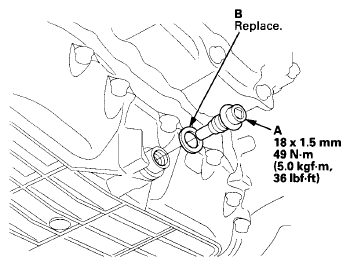

Fig 1: Drain Plug And Sealing Washer With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reinstall the drain plug and a new sealing washer (B).
NOTE:
- Remove metal particles from the magnetic surface of the drain plug.
- If a cooler cleaning is necessary, refer to the CVTF COOLER CLEANING .
Disconnect the CVTF cooler hoses (A) from the CVTF filter (B).

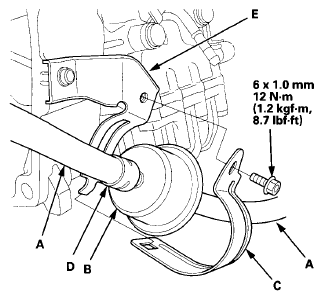

Fig 2: CVTF Cooler Hoses, CVTF Filter And Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolt securing the CVTF filter holder (C), and remove the CVTF filter.
Slide the CVTF cooler hose on the CVTF filter until the hose end contacts the filter housing, and secure the hose with the clip (D) at 6-8 mm (0.24-0.31 in) from the filter housing. Install the cooler hose on the other side of the CVTF filter in the same manner.
Secure the new CVTF filter on its bracket (E) with the CVTF filter holder and the bolt.
Refill the transmission with CVTF to the proper level (see step 8).
Install the splash shield (see SPLASH SHIELD REPLACEMENT ).
