Carrier Bearing Replacement

Special Tools Required

Driver Handle, 40 mm I.D. 07746-0030100

1. Remove the carrier bearings (transmission housing side and flywheel housing side) (A) using a commercially available puller (B) and a spacer (C), and replace the carrier bearings.
   Fig 1: Removing Carrier Bearings

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

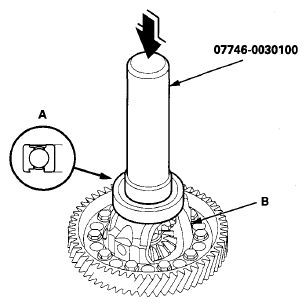

2. Install new bearings (A) in the direction on the differential carrier (B) using the 40 mm driver handle and a press. Press the bearing on until it bottoms.
   Fig 2: Installing Bearings On Differential Carrier

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
