Five-position Transmission

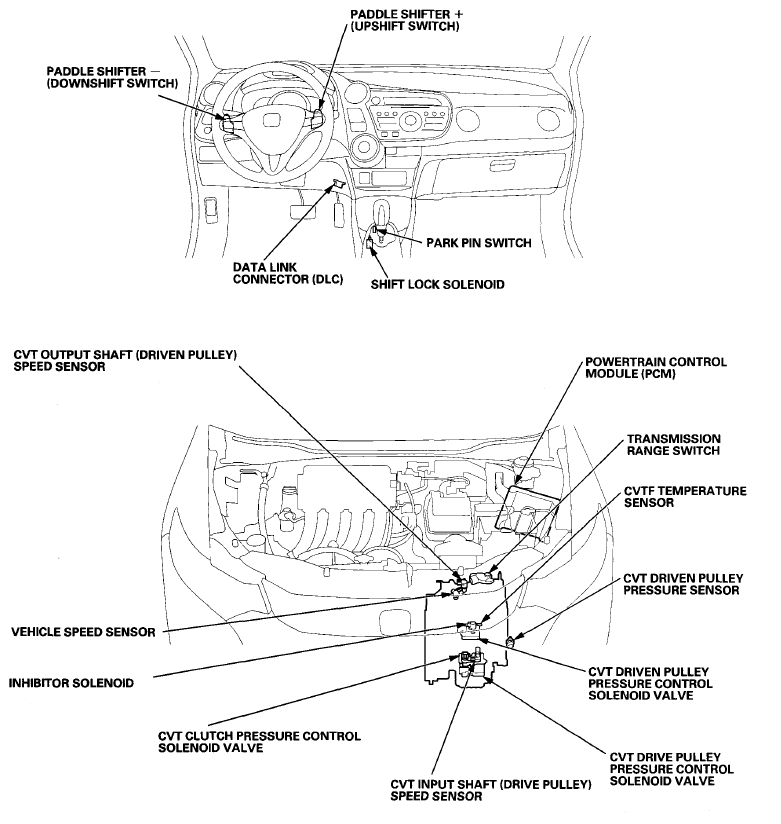

Fig 1: Identifying CVT Component Location (Five-Position Transmission)
G08093012Courtesy of AMERICAN HONDA MOTOR CO., INC.
