Component Location Index: Overview

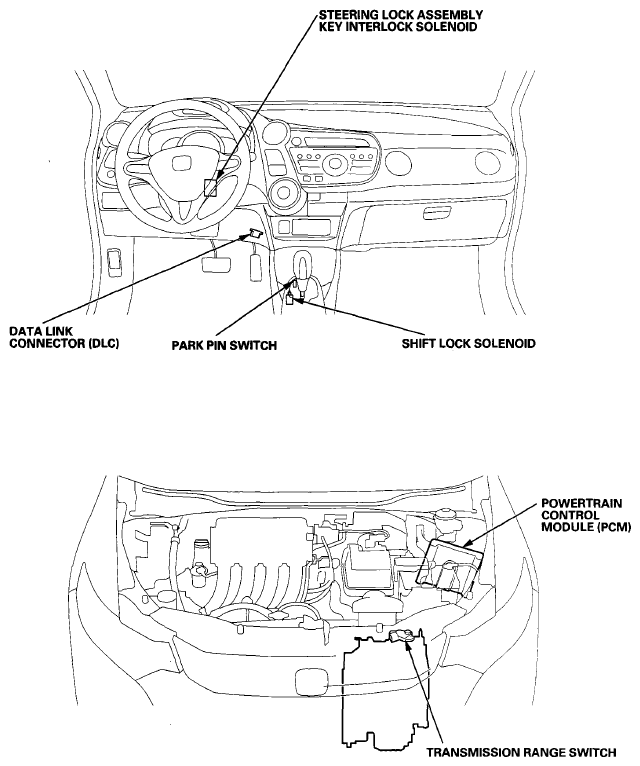

Fig 1: Identifying A/T Interlock System Components Location
G08093334Courtesy of AMERICAN HONDA MOTOR CO., INC.

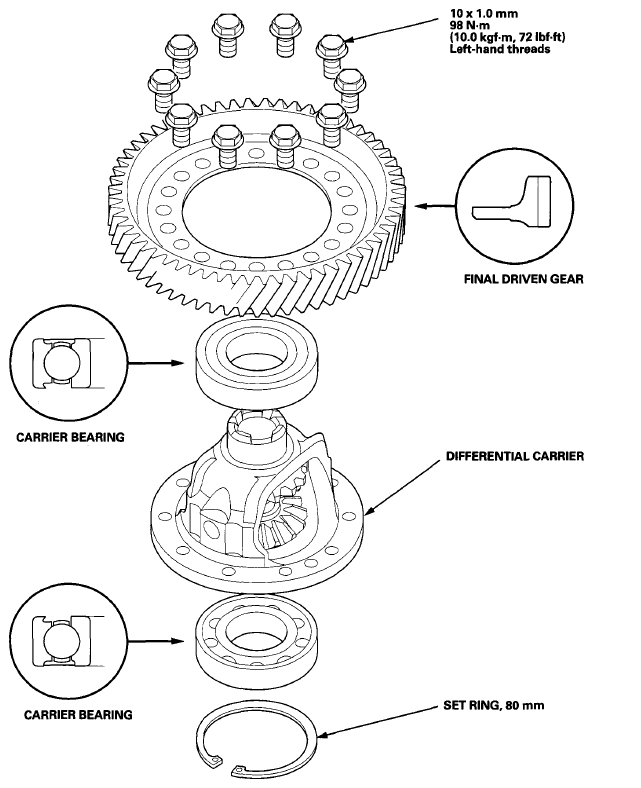

Fig 1: Identifying CVT Differential Components Location
G08093384Courtesy of AMERICAN HONDA MOTOR CO., INC.
