Six-position Transmission

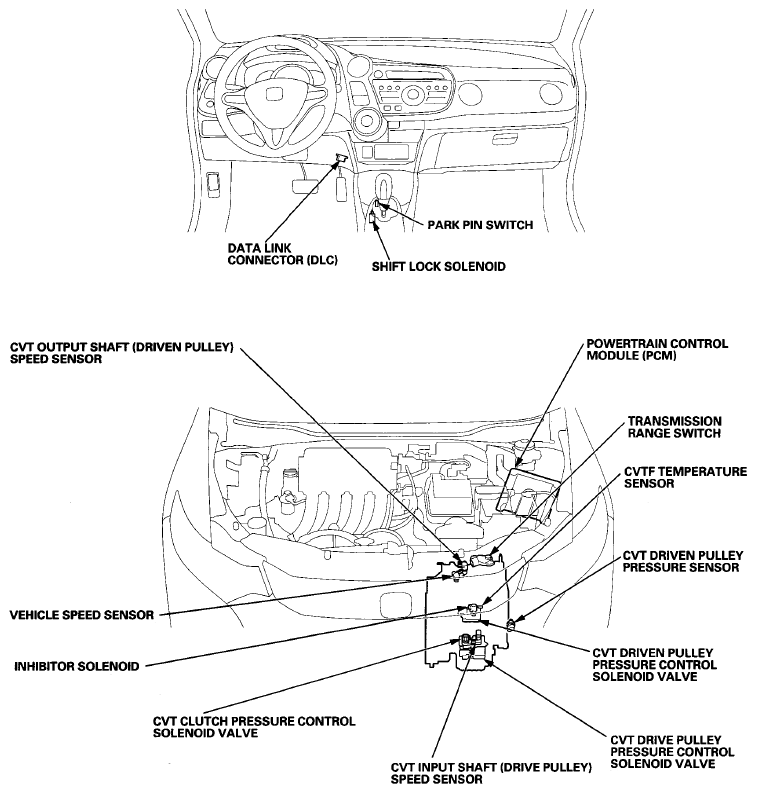

Fig 1: Identifying CVT Component Location (Six-Position Transmission)
G08093013Courtesy of AMERICAN HONDA MOTOR CO., INC.
