Driven Pulley Pressure Sensor Removal/Installation

  1. Remove the CVT driven pulley pressure sensor (A).

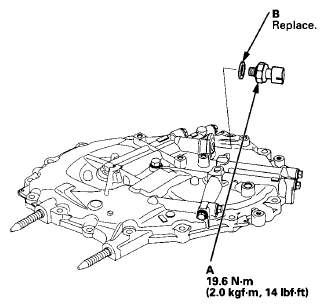

    Fig 1: CVT Driven Pulley Pressure Sensor With Torque Specifications
    G08093360Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the new CVT driven pulley pressure sensor and a new sealing washer (B), and tighten the sensor.
