Inhibitor Solenoid Test
- Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).

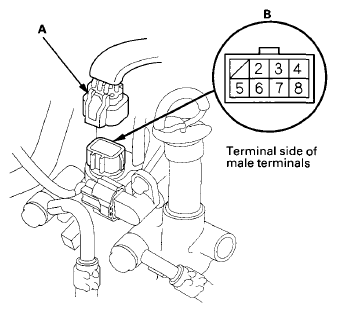

- Disconnect the solenoid wire harness 8P connector (A).
- Measure the inhibitor solenoid resistance between solenoid wire harness 8P connector (B) terminal No. 5 and body ground.
Standard: 11.7-21.0 Ω
- If the resistance is out of standard, check for open or short in the solenoid wire harness. If the wire is OK, replace the inhibitor solenoid (see INHIBITOR SOLENOID REPLACEMENT ).
- Connect a jumper wire from the battery positive terminal to solenoid wire harness 8P connector terminal No. 5, and connect another jumper wire from the battery negative terminal to body ground. A clicking sound should be heard.
- If no clicking sound is heard, replace the inhibitor solenoid (see INHIBITOR SOLENOID REPLACEMENT ).
