Oil Seal Replacement

Special Tools Required

• Driver Handle, 15 x 135L 07749-0010000
• Bearing Driver Attachment, 78 x 80 mm 07NAD-PX40100
• Oil Seal Driver Attachment, 58 mm 07JAD-PH80101

1. Remove the oil seal (A) from the transmission housing.
   Fig 1: Removing Oil Seal From Transmission Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Remove the oil seal (A) from the flywheel housing.
   Fig 2: Removing Oil Seal From Flywheel Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

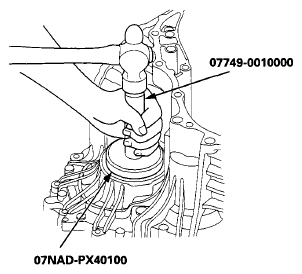

3. Install a new oil seal flush to the transmission housing using the 15 x 135L driver handle and the 78 x 80 mm bearing driver attachment.
   Fig 3: Installing Oil Seal To Transmission Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install a new oil seal flush with the flywheel housing using the 15 x 135L driver handle and the 58 mm oil seal driver attachment.
   Fig 4: Installing Oil Seal With Flywheel Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
