Exploded View

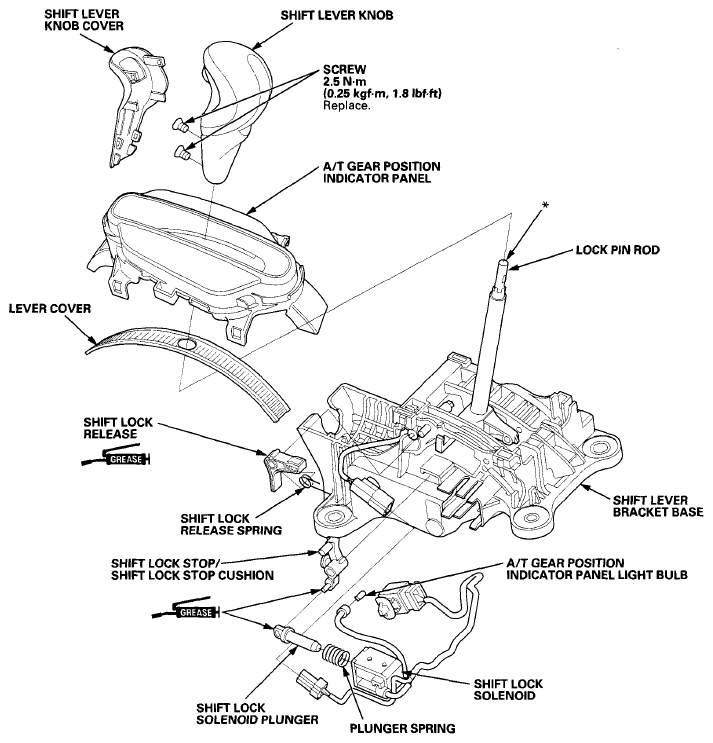

Fig 1: Exploded View Of Shift Lever With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
