Shift Lock Stop/Shift Lock Stop Cushion Replacement

NOTE: Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands or gloves.

Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
Remove the shift lock solenoid assembly (A) (see SHIFT LOCK SOLENOID REPLACEMENT ).

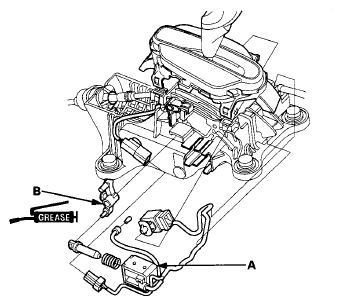

Fig 1: Identifying Shift Lock Solenoid Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the shift lock stop/stop cushion (B), and replace them as an assembly.
Install the shift lock solenoid assembly (see SHIFT LOCK SOLENOID REPLACEMENT ).
Install the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
