Change the shift map

The gear ratio pulley ratio is changed to make the engine speed lower under a constant acceleration pedal position (cruise) or a slow accelerating condition.

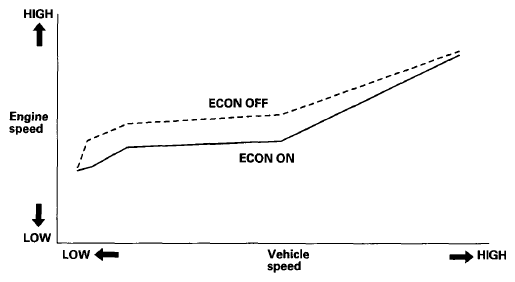

Fig 1: ECON On Mode Graph (Change Shift Map)
G08093022Courtesy of AMERICAN HONDA MOTOR CO., INC.
