PCM CVT Control System Electrical Connections-Six-position Transmission

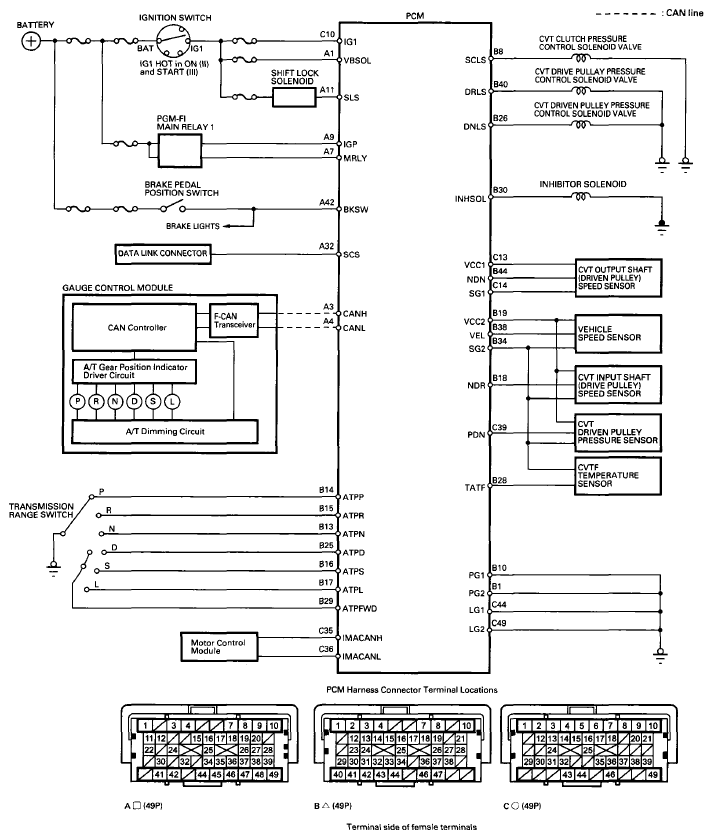

Fig 1: PCM CVT Control System Electrical Connections-Six-Position Transmission Circuit Diagram
G08093028Courtesy of AMERICAN HONDA MOTOR CO., INC.
