Hydraulic Flow: Notes
As the engine turns, the CVTF pump starts to operate. Transmission fluid (CVTF) is drawn through the CVTF strainer (filter) and discharged into the hydraulic circuit. Then, CVTF flowing from the CVTF pump flows to the pressure high (PH) regulator valve and becomes the pressure high (PH) pressure. PH pressure flows to the pulley control valves and then to the pulleys.
The PCM actuates the solenoid valves to control hydraulic pressure shifting pulley ratio and engaging the start clutch.

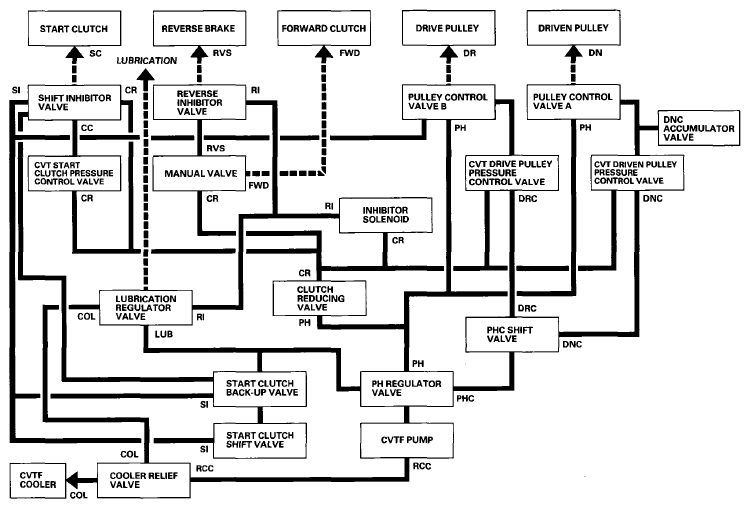

HYDRAULIC PRESSURE FLOW CIRCUIT DIAGRAM
| Port No. | Hydraulic Pressure |
|---|---|
| CC | Start Clutch Control |
| CCB | Start Clutch Control B |
| COL | CVTF Cooler |
| CR | Clutch Reducing |
| DN | Driven Pulley |
| DNC | Driven Pulley Control |
| DR | Drive Pulley |
| DRC | Drive Pulley Control |
| FWD | Forward Clutch |
| LUB | Lubrication |
| PH | Pressure High |
| PHC | Pressure High Control |
| RCC | Recirculation |
| RI | Reverse Inhibitor |
| RVS | Reverse Brake |
| SC | Start Clutch |
| SI | Shift Inhibitor |
| X | Drain |
