Driving Pattern

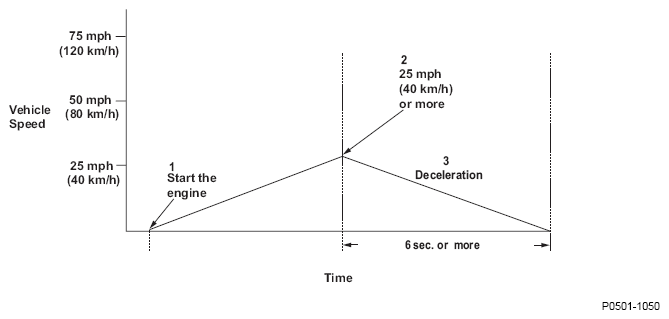

Fig 1: Vehicle Speed Driving Pattern
G06617517
  1. Start the engine.
  2. Drive the vehicle at a speed of 25 mph (40 km/h) or more.
  3. Release the accelerator pedal, and slow down the vehicle for more than 6 seconds.
    • Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.
