PCV Valve Replacement

Disconnect the hose (A).

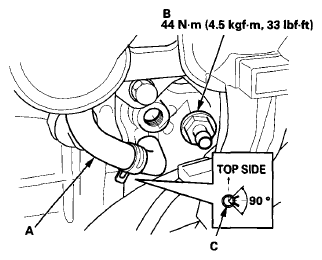

Fig 1: Identifying PCV Valve And Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the PCV valve (B).
Install the parts in the reverse order of removal.
NOTE: Make sure the hose clamp (C) is positioned as shown.
