CMP Sensor Replacement

Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
Remove the cowl cover and the under-cowl panel (see COWL COVER REPLACEMENT ).
Disconnect the CMP sensor 3P connector (A).

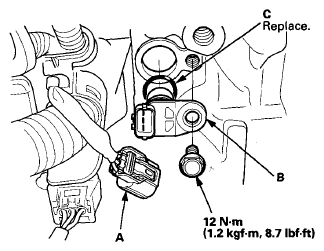

Fig 1: CMP Sensor, 3P Connector And O-Ring With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the CMP sensor (B).
Install the sensor in the reverse order of removal with a new O-ring (C).
