Selector Control Shaft Oil Seal Replacement

Special Tools Required

• Driver Handle, 15 x 135L 07749-0010000
• Bearing Driver Attachment, 24 x 26 mm 07746-0010700

1. Remove the selector control shaft (see SELECTOR CONTROL SHAFT REMOVAL/INSTALLATION ).
2. Remove the selector control shaft oil seal (A) from the transmission housing (B).
   Fig 1: Identifying Selector Control Shaft Oil Seal And Transmission Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install a new selector control shaft oil seal (A) flush with the transmission housing level (B) using the 15 x 135L driver handle and the 24x26 mm bearing driver attachment.

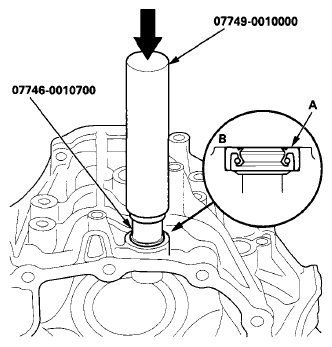

   Fig 2: Installing Selector Control Shaft Oil Seal With Transmission Housing Level

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install the selector control shaft (see SELECTOR CONTROL SHAFT REMOVAL/INSTALLATION ).
