DTC P0685: Powertrain Control Module (PCM) Power Control Circuit/Internal Circuit Malfunction: Notes

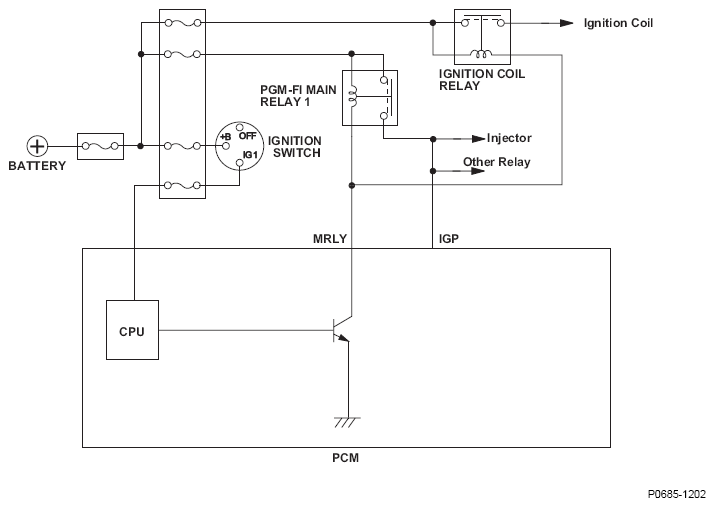

Fig 1: Powertrain Control Module (PCM) Power Control - Circuit Diagram
G08568523
