Throttle Body Disassembly/Reassembly

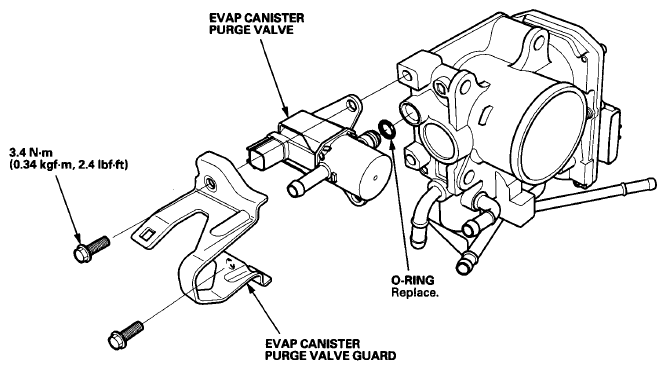

Fig 1: EVAP Canister Purge Valve, Guard, O-Ring And Bolts With Torque Specifications
G08092585Courtesy of AMERICAN HONDA MOTOR CO., INC.
