Rear Power Window Motor Test

Remove the rear power window switch panel (see REAR POWER WINDOW SWITCH REPLACEMENT ).
Test the motor in each direction by connecting battery power and ground to the rear power window switch 14P connector (A) according to the table.

Fig 1: Rear Power Window Switch 14P Connector Terminal Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO.,INC.

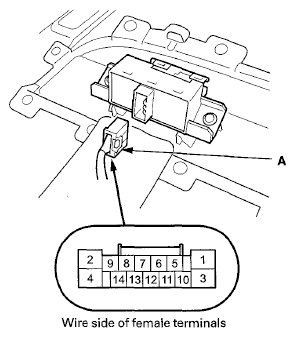

Fig 2: Connecting Battery Power And Ground To Rear Power Window Switch 14P Connector
Courtesy of AMERICAN HONDA MOTOR CO.,INC.
If the motor does not run or fails to run smoothly, go to step 4. If the motor runs smoothly, do the rear power window switch test (see REAR POWER WINDOW SWITCH TEST ).
Remove the door panel (see SLIDING DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 2P connector (A) from the rear power window motor (B).

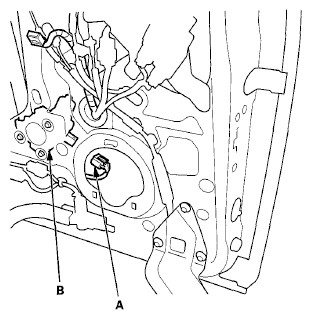

Fig 3: Identifying 2P Connector With Rear Power Window Motor
Courtesy of AMERICAN HONDA MOTOR CO.,INC.

Check for continuity between the rear power window switch 14P connector terminals and rear power window motor 2P connector terminals as shown. There should be continuity.

CONNECTOR TERMINAL REFERENCE CHART

Rear power window switch 14P connector

Rear power window motor 2P connector

1 (RED)⁽¹⁾, (ORN)⁽²⁾

2 (BRN)⁽¹⁾, (YEL)⁽²⁾

⁽¹⁾	Left rear power window

⁽²⁾	Right rear power window

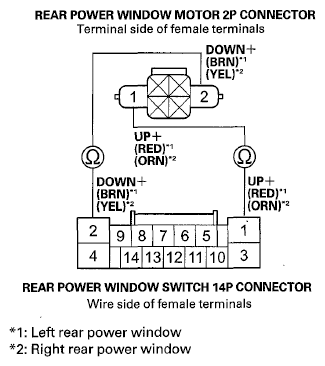

Fig 4: Checking Continuity Between Rear Power Window Switch Connector Terminals And Rear Power Window Motor Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO.,INC.

If the wire harness is OK, faulty rear power window motor; replace the rear power window motor (see REAR POWER WINDOW MOTOR REPLACEMENT ).
