Circuit Diagram - Power Mirror

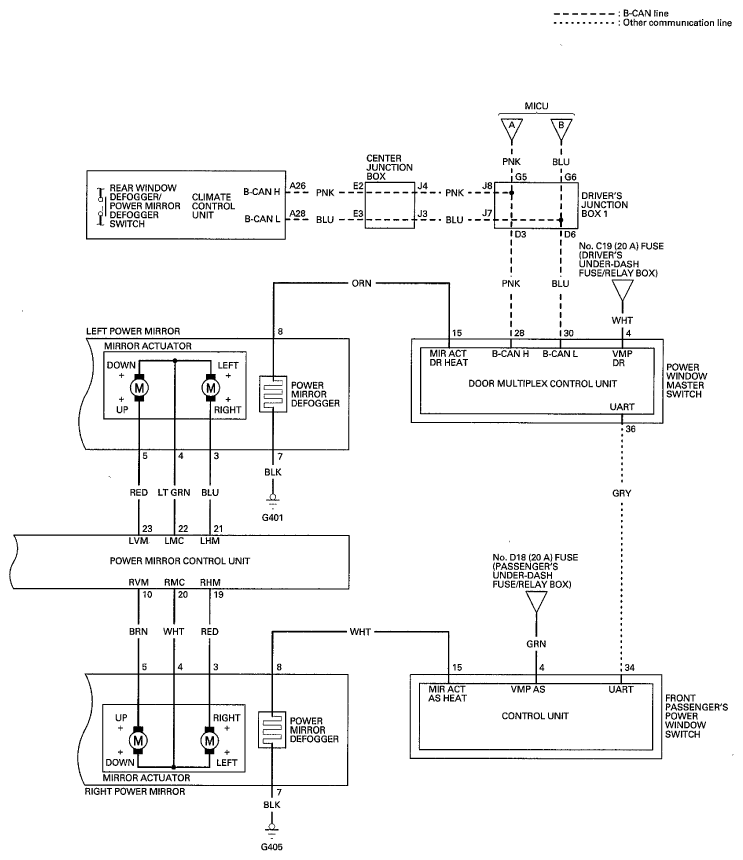

Fig 1: Power Mirror Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Power Mirror Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
