Driver's Power Seat Motor Test

NOTE: SRS Components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.

Remove the driver's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
Disconnect the 5P connector from each power seat motor.
NOTE:
- For the recline motor, remove the seat-back cover (see FRONT SEAT-BACK COVER REPLACEMENT ).
- All connectors are terminal side of male terminals.

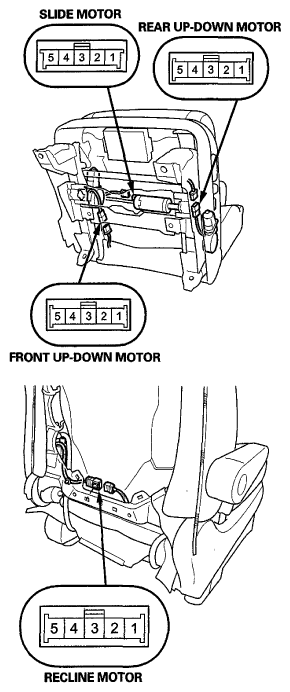

  Fig 1: Identifying Slide Motor, Rear Up-Down Motor And Front Up-Down Motor Connector Terminals
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test each motor by connecting power and ground according to the table. When the motor stops running, disconnect battery power immediately.

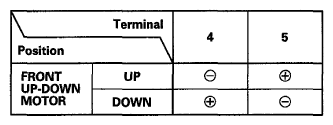

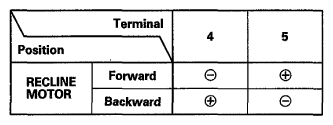

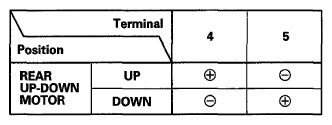

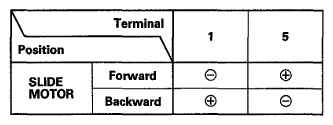

Fig 2: Driver's Power Seat Motor Continuity Chart (1 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Driver's Power Seat Motor Continuity Chart (2 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Driver's Power Seat Motor Continuity Chart (3 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Driver's Power Seat Motor Continuity Chart (4 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, replace the motor:
- Slide motor (see FRONT SEAT SLIDE MOTOR REPLACEMENT )
- Front up-down motor
- Rear up-down motor
- Recline motor (see FRONT SEAT RECLINE MOTOR REPLACEMENT )
  NOTE: Replace the front or rear up-down motors/seat frame as an assembly (see FRONT SEAT FRAME REPLACEMENT ).
