Power Seat Adjustment Switch Test/Replacement

NOTE: SRS Components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.

Remove the driver's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
Remove the power seat adjustment switch knobs (A) from the power seat adjustment switch (B).

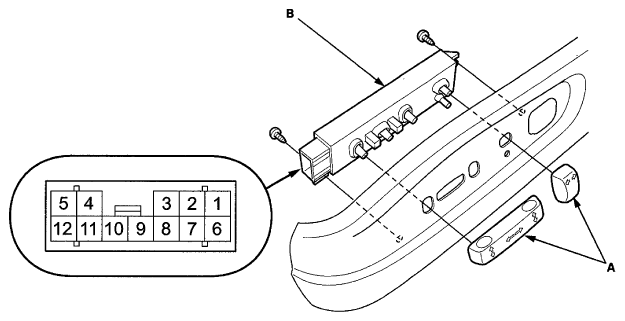

Fig 1: Identifying Power Seat Adjustment Switch Knobs And Power Seat Adjustment Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the driver's seat front cover (see FRONT SEAT CUSHION COVER REPLACEMENT ) and recline cover (see FRONT SEAT RECLINE COVER REMOVAL/INSTALLATION ).
Disconnect the 12P connector from the switch, then remove the two screws.
Reinstall the adjustment switch knobs to the switch.
Check for continuity between the terminals in each position according to the table.

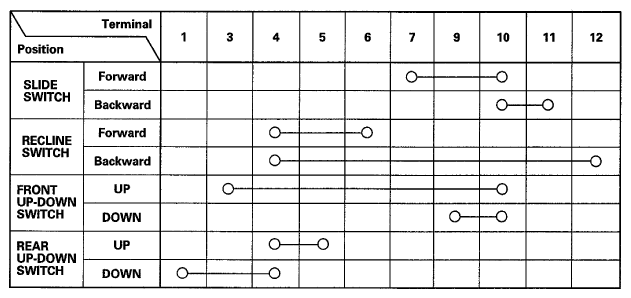

Fig 2: Power Seat Adjustment Switch Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
Install the part in the reverse order or removal.
