Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Power Windows
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

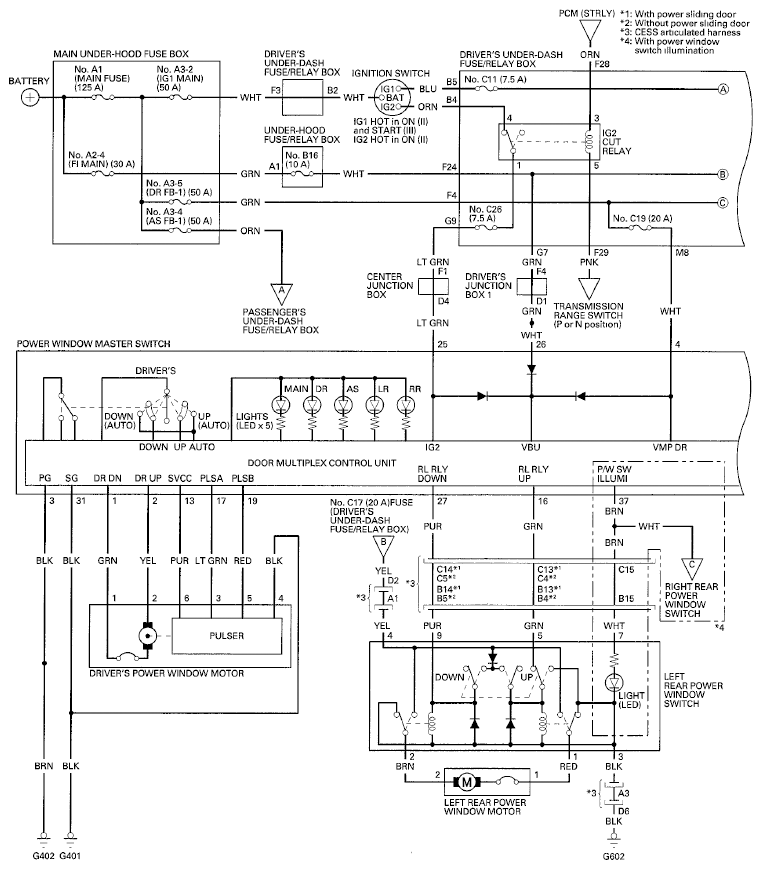

Fig 1: Power Window System Circuit Diagram (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO.,INC.

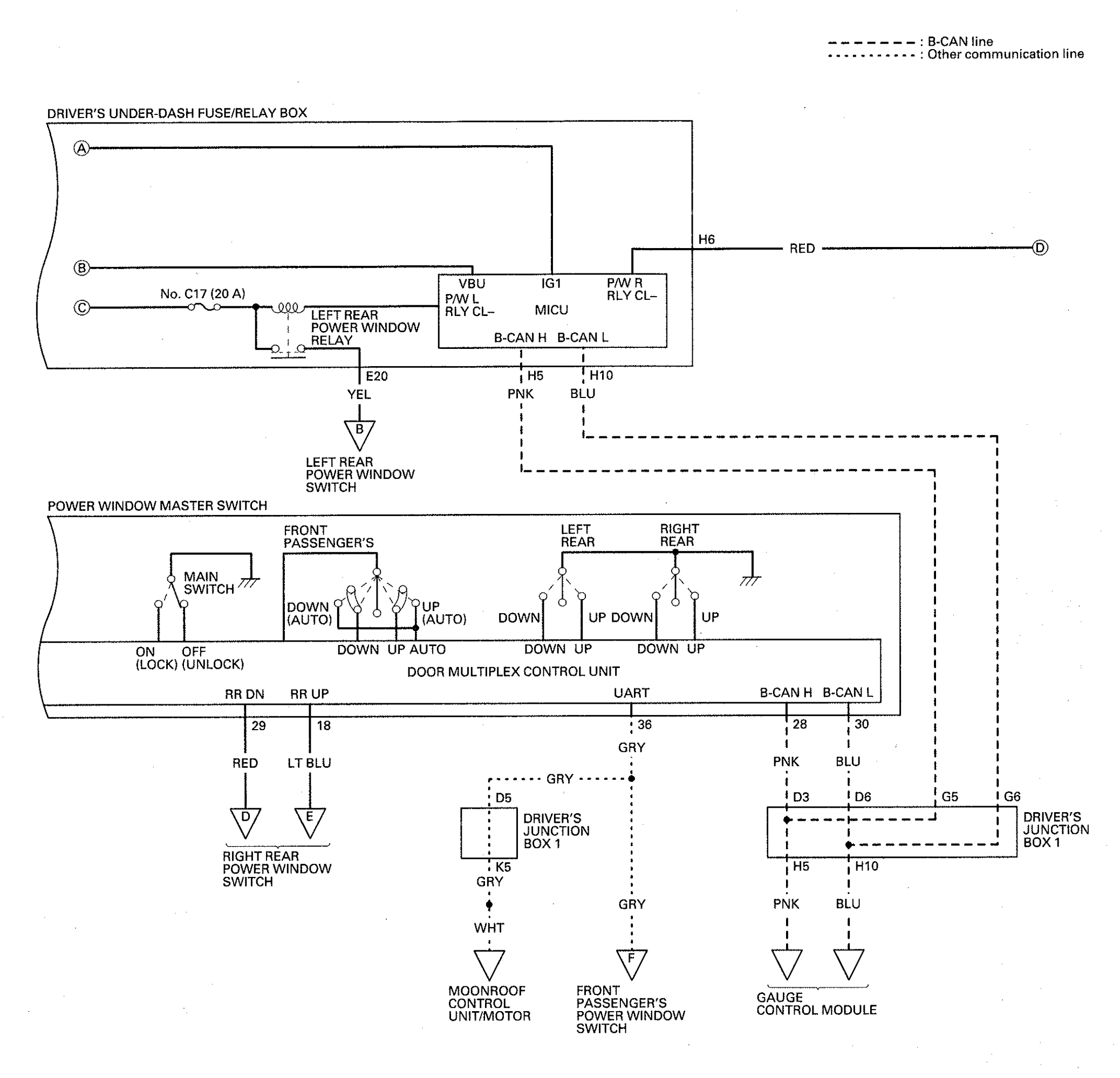

Fig 2: Power Window System Circuit Diagram (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO.,INC.

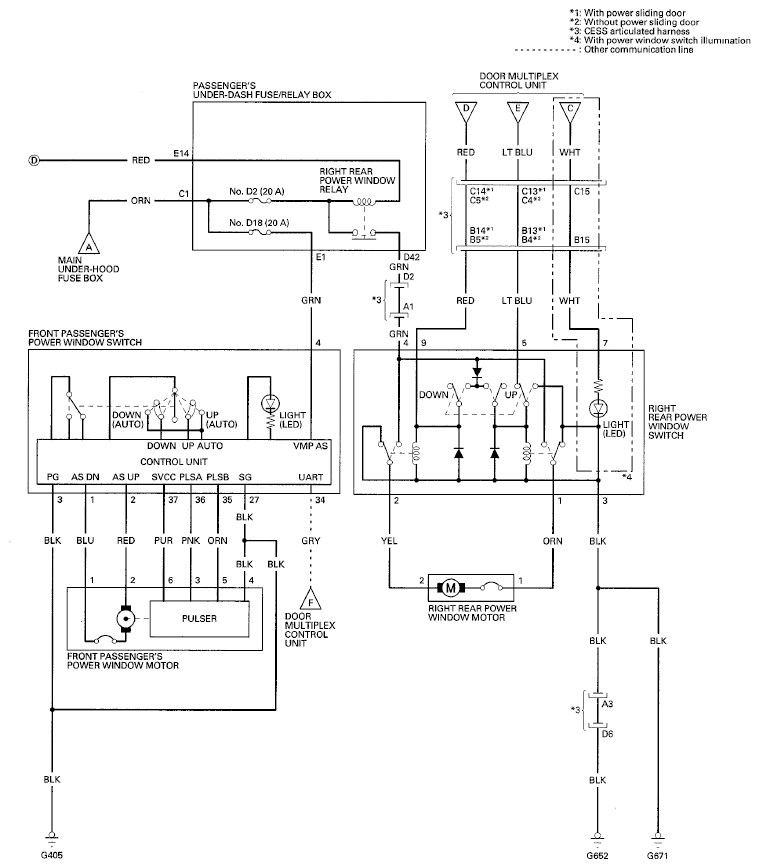

Fig 3: Power Window System Circuit Diagram (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO.,INC.
Courtesy of AMERICAN HONDA MOTOR CO.,INC.
Courtesy of AMERICAN HONDA MOTOR CO.,INC.
Courtesy of AMERICAN HONDA MOTOR CO.,INC.
