Power Window Master Switch Input Test

NOTE: Before testing, troubleshoot the multiplex integrated control system first, using B-CAN System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A ).
  1. Turn the ignition switch to LOCK (0).
  2. Open and close the driver's door, then remove the power window master switch panel (see POWER WINDOW MASTER SWITCH REPLACEMENT ).
  3. Disconnect the 37P connector (A) from the power window master switch (B).

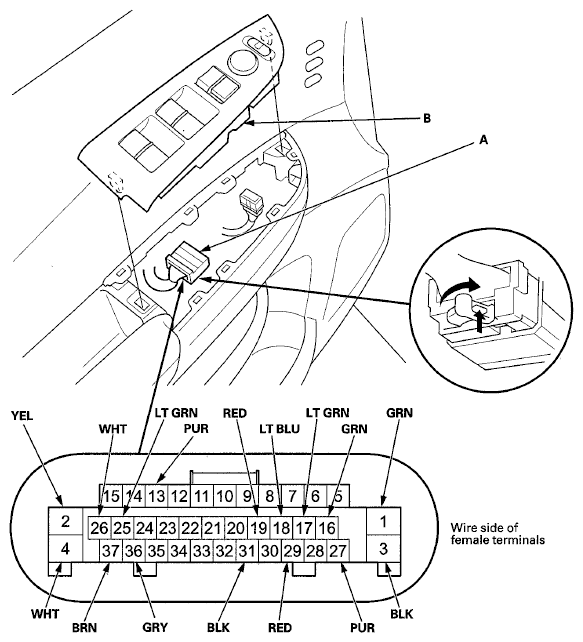

    Fig 1: Disconnecting 37P Connector From Power Window Master Switch
    G06969863Courtesy of AMERICAN HONDA MOTOR CO.,INC.

    4. *With power window switch illumination

  4. Inspect the connector and socket terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
    • If the terminals look OK, go to step 5.
  5. Reconnect the connector to the power window master switch, turn the ignition switch to ON (II), and do the following input tests:
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, go to step 6.
      POWER WINDOW MASTER SWITCH INPUT TEST RESULT

      Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained
      26 WHT Under all conditions Measure the voltage to ground: There should be battery voltage.
      • Blown No. B16 (10 A) fuse in the under-hood fuse/relay box
      • Faulty driver's under-dash fuse/relay box
      • An open or high resistance in the wire
      25 LT GRN Ignition switch ON (II) Measure the voltage to ground: There should be battery voltage.
      • Blown No. C26 (7.5 A) fuse in the driver's under-dash fuse/relay box
      • Faulty driver's under-dash fuse/relay box
      • An open or high resistance in the wire
      4 WHT Under all conditions Measure the voltage to ground: There should be battery voltage.
      • Blown No. C19 (20 A) fuse in the driver's under-dash fuse/relay box
      • Faulty driver's under-dash fuse/relay box
      • An open or high resistance in the wire
      31 BLK In all ignition switch positions Check for continuity to ground: There should be continuity.
      • Poor ground (G401)
      • An open or high resistance in the ground wire
      3 BLK In all ignition switch positions Check for continuity to ground: There should be continuity.
      • Poor ground (G402)
      • An open or high resistance in the ground wire
      13 PUR Ignition switch ON (II) Measure the voltage to ground: There should be battery voltage.
      • Faulty power window master switch
      • A short to ground in the wire
      19 RED Ignition switch ON (II), and driver's power window moving up or down Measure the voltage between terminals No. 19 and No. 3: An analog voltmeter should alternate to between 0 V and about 5 V (a digital voltmeter should read about 2.5 V while the window moves).
      • Faulty power window master switch
      • Faulty driver's power window motor
      • An open or high resistance in the wire
      • A short to ground in the wire
      17 LT GRN Ignition switch ON (II), and driver's power window moving up or down Measure the voltage between terminals No. 17 and No. 3: An analog voltmeter should alternate to between 0 V and about 5 V (a digital voltmeter should read about 2.5 V while the window moves).
      • Faulty power window master switch
      • Faulty driver's power window motor
      • An open or high resistance in the wire
      • A short to ground in the wire
  6. With the connector still disconnected, do the following input tests:
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, the door multiplex control unit must be faulty, replace the power window master switch (see POWER WINDOW MASTER SWITCH REPLACEMENT  ).
      NOTE: After replacing the power window master switch, reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT  ).
      POWER WINDOW MASTER SWITCH INPUT TEST RESULT

      Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained
      2 YEL Ignition switch ON (II), connect terminals No. 4 and No. (or No. 2), and terminals No. 2 (or No. 1) and No. 3 with jumper wires. Check driver's power window motor operation: The driver's power window should open (or close).
      • Faulty driver's power window motor
      • An open or high resistance in the wire
      1 GRN
      16 GRN Ignition switch ON (II), connect terminals No. 4 and No. 27 (or No. 16), and terminals No. 16 (or No. 27) and No. 3 with jumper wires. Check left rear power window motor operation: The left rear power window should open (or close).
      • Blown No. C17 (20 A) fuse in the driver's under-dash fuse/relay box
      • Faulty driver's under-dash fuse/relay box
      • Faulty left rear power window switch
      • Faulty left rear power window motor
      • Poor ground (G602) or an open in the ground wire
      • An open or high resistance in the wire
      27 PUR
      18 LT BLU Ignition switch ON (II), connect terminals No. 4 and No. 29 (or No. 18), and terminals No. 18 (or No. 29) and No. 3 with jumper wires. Check right rear power window motor operation: The right rear power window should open (or close).
      • Blown No. D2 (20 A) fuse in the passenger's under-dash fuse/relay box
      • Faulty right rear power window relay
      • Faulty right rear power window switch
      • Faulty right rear power window motor
      • Poor ground (G652 and G671) or an open in the ground wire
      • An open or high resistance in the wire
      • An open in the CESS articulated harness
      29 RED
      37(1) BRN Connect terminals No. 4 and No. 37 with a jumper wire. Check left and right rear power window switch lights: The left and right rear power window switch lights should come on.
      • Faulty LED
      • Faulty left or right rear power window switch
      • Poor ground (G602, G652, G671) or an open in the ground wire
      • An open or high resistance in the wire
      • An open in the CESS articulated harness
      36 GRY Disconnect the front passenger's power window switch 37P and moonroof control unit/motor 14P connectors. Check for continuity between terminal No. 36 and front passenger's power window switch 37P connector terminal No. 34: There should be continuity. An open in the UART wire
      Check for continuity between terminal No. 36 and moonroof control unit/motor 14P connector terminal No. 12: There should be continuity. An open in the UART wire
      Check for continuity to ground: There should be no continuity. A short to ground in the UART wire
      (1) With power window switch illumination
