Power Window Master Switch Replacement

Carefully remove the power window master switch panel (A).

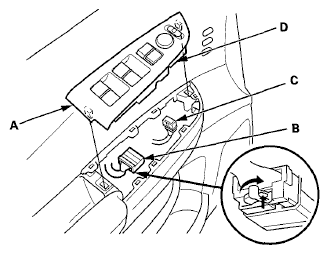

Fig 1: Disconnecting 37P Connector From Power Window Master Switch
Courtesy of AMERICAN HONDA MOTOR CO.,INC.
Disconnect the 37P connector (B) from the power window master switch, and the 13P connector (C) from the power mirror switch (D).
Remove the four screws and the power window master switch (A).

Fig 2: Removing Power Window Master Switch With Mounting Screws
Courtesy of AMERICAN HONDA MOTOR CO.,INC.
Install the switch in the reverse order of removal.
Resetting the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT ).
