Rear Power Window Switch Test

Remove the rear power window switch panel (see REAR POWER WINDOW SWITCH REPLACEMENT ), and disconnect the 14P connector from the switch.
Check for continuity between the terminals by connecting battery power and ground according to the table.

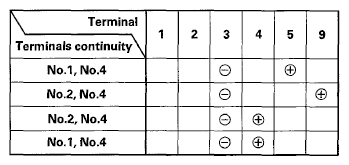

Fig 1: Rear Power Window Switch Connector Terminal Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO.,INC.

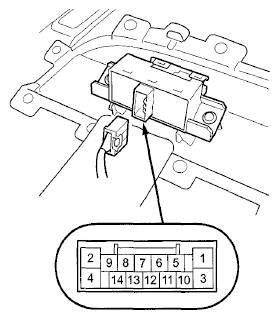

Fig 2: Identifying Rear Power Window Switch Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO.,INC.
If the continuity is not as specified, replace the switch (see REAR POWER WINDOW SWITCH REPLACEMENT ).
