Component Location Index

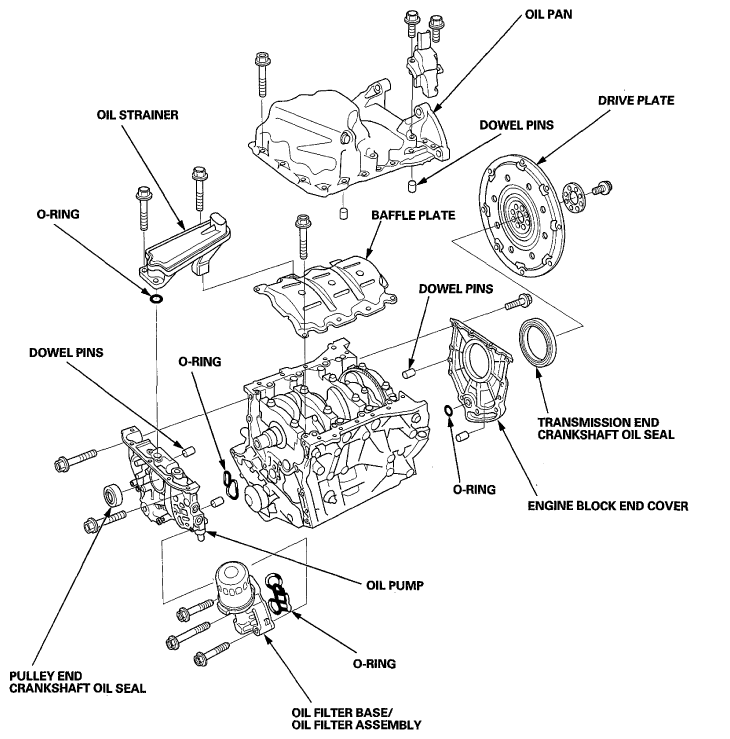

Fig 1: Identifying Engine Block Assembly Replacement Components (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

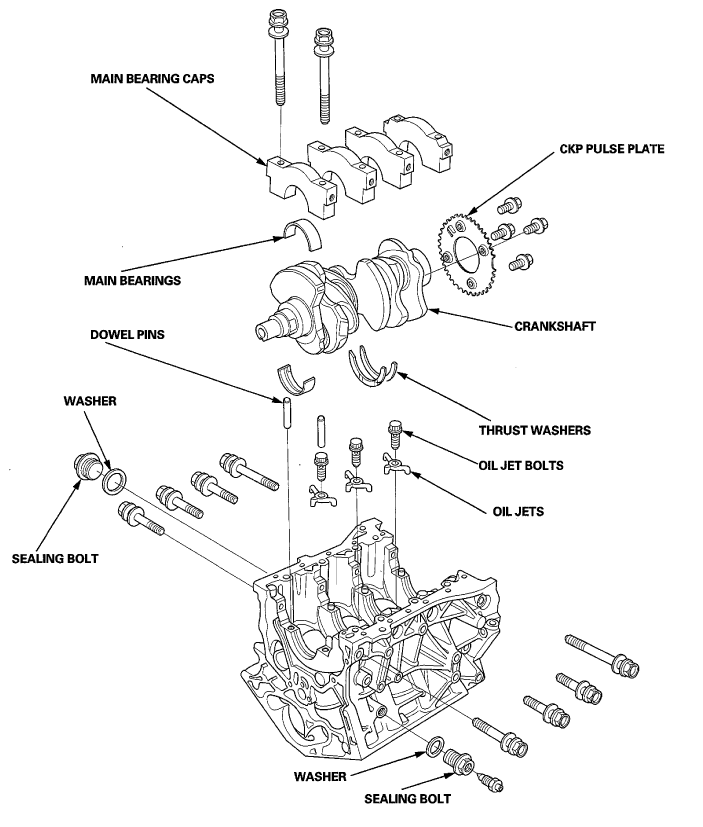

Fig 2: Identifying Engine Block Assembly Replacement Components (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

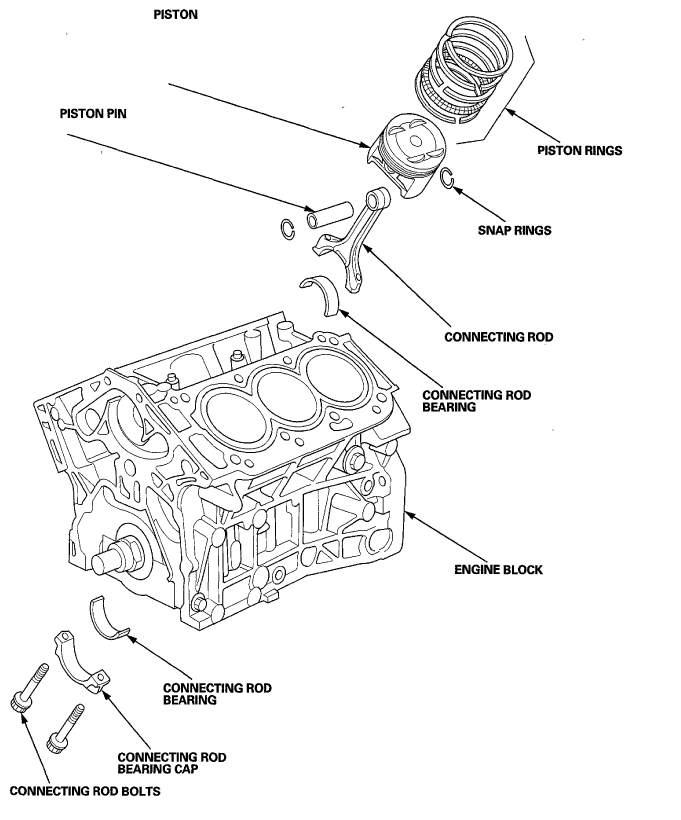

Fig 3: Identifying Engine Block Assembly Replacement Components (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
