EGR Pipe Removal/Installation

Remove the EGR pipe mounting bolts (A).

Fig 1: EGR Pipe Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Raise the vehicle on a lift.
Remove the front splash shield (see FRONT SPLASH SHIELD REPLACEMENT ).
Remove the EGR pipe mounting nuts (A).

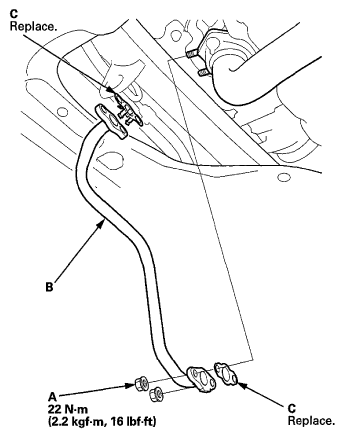

Fig 2: EGR Pipe Mounting Nuts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the EGR pipe (B).
Install the parts in the reverse order of removal with new gaskets (C).
