EGR Valve Replacement

Remove the engine cover (see step 7 on ENGINE REMOVAL ).
Disconnect the EGR valve 5P connector (A).

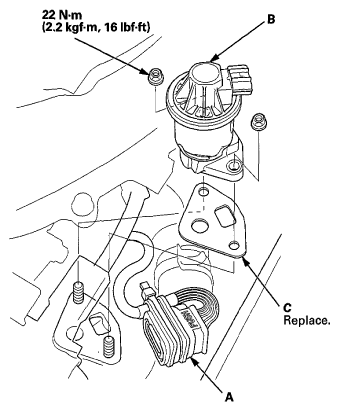

Fig 1: Identifying EGR Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the EGR valve (B).
Install the parts in the reverse order of removal with a new gasket (C).
