Component Location Index

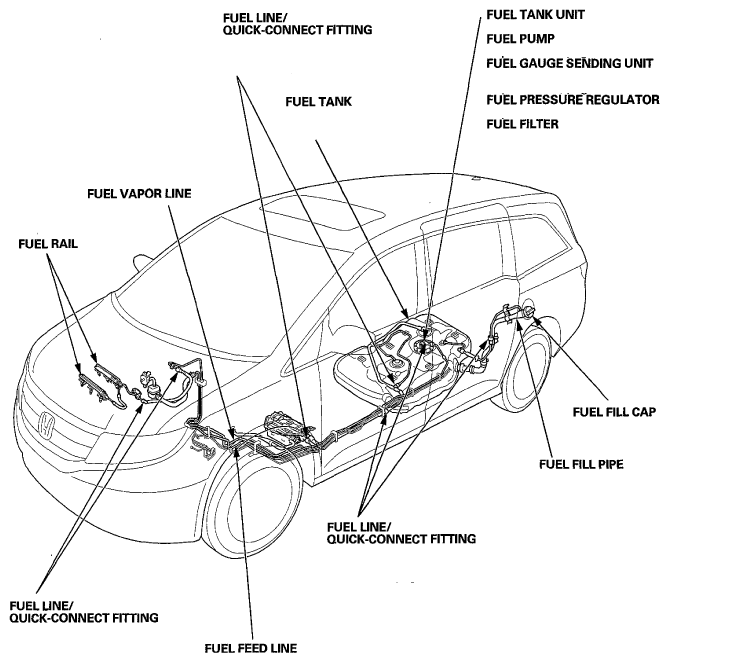

Fig 1: Fuel Supply System Component Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.

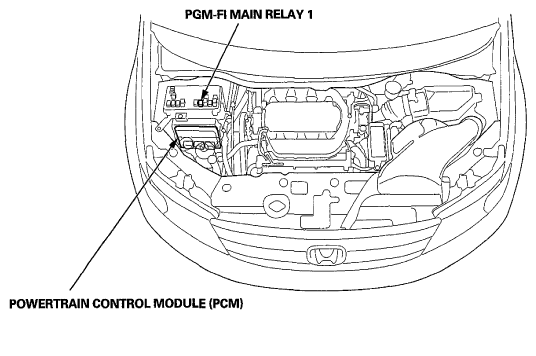

Fig 2: Identifying PCM And PGM-FI Main Relay 1

Courtesy of AMERICAN HONDA MOTOR CO., INC.

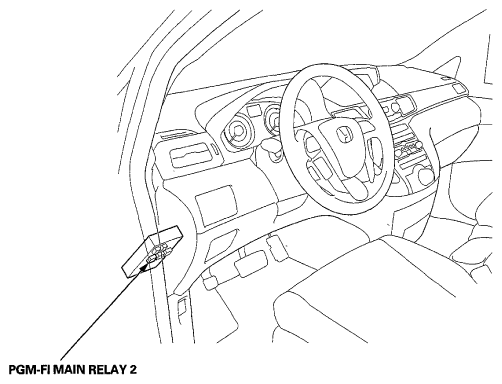

Fig 3: Identifying PGM-FI Main Relay 2

Courtesy of AMERICAN HONDA MOTOR CO., INC.
