Fuel Line Inspection

Check the fuel system lines and hoses for damage, leaks, and deterioration. Replace any damaged parts.

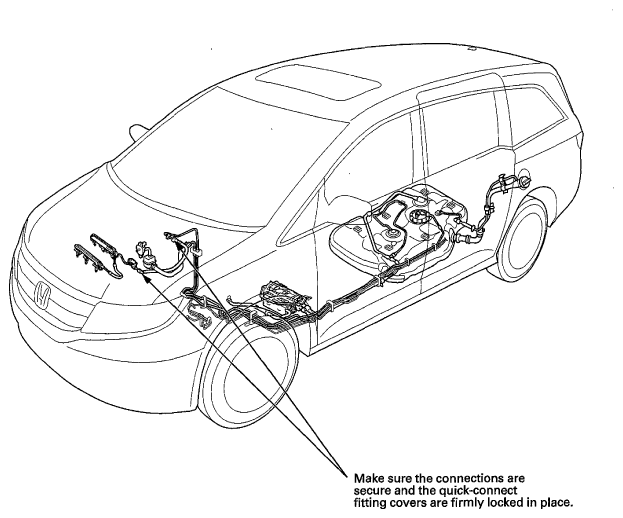

Fig 1: Identifying Quick-Connect Fitting Cover And Connections

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check all clamps, and make sure they are properly positioned and tightened.

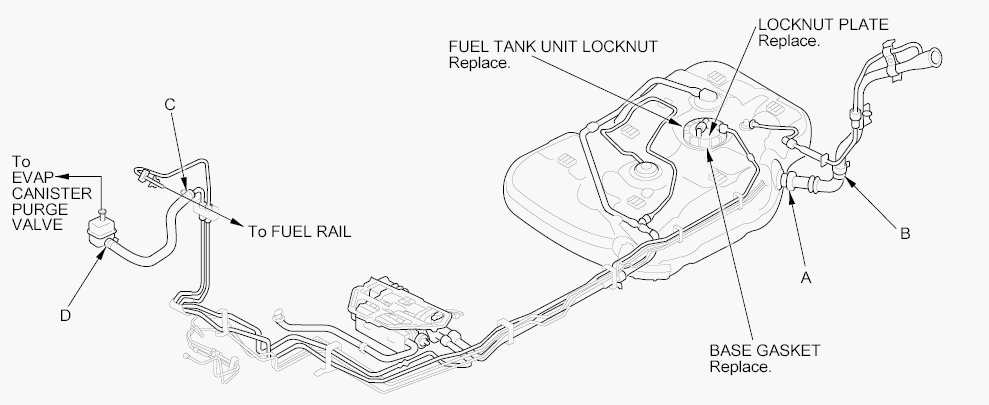

Fig 2: Identifying Fuel Lines Clamps

Courtesy of AMERICAN HONDA MOTOR CO., INC.

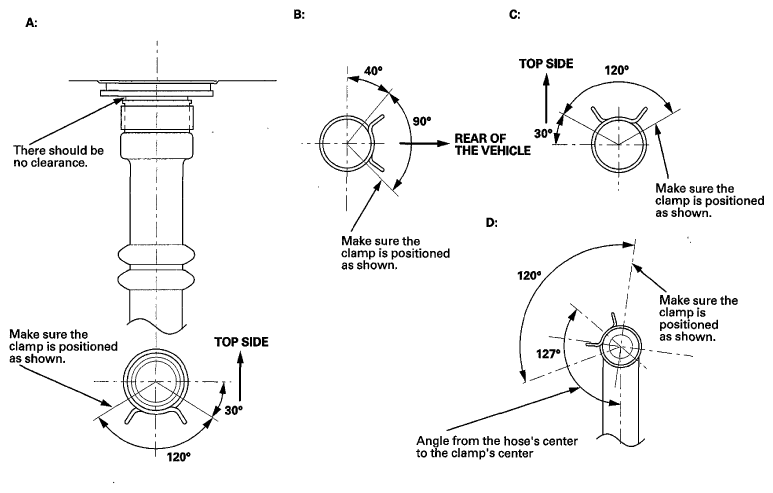

Fig 3: Fuel Lines Clamps Positioning Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
