Fuel Tank Replacement
- Drain the fuel tank (see FUEL TANK DRAINING
).
- Raise the vehicle on a lift.

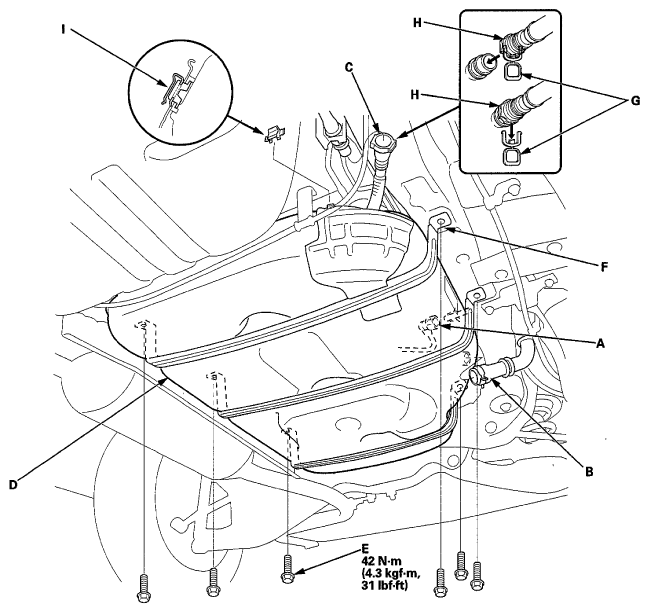

- Disconnect the quick-connector fitting (A), and the hose (B). Slide back the clamps, then twist the hose as you pull to avoid damaging it.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Disconnect the fuel vapor hose connector (C).
- Place a jack or other support under the fuel tank (D), then remove the strap bolts (E) and the straps (F).
- Remove the fuel tank.
- Install the parts in the reverse order of removal.
NOTE:
- New fuel tanks have a ring pull (G) at the fuel vapor hose connector (H). When you connect the hose and confirm that the connection is secure, remove the ring pull by pulling it down.
- Before connecting the fuel fill pipe and the quick-connect fitting, check for dirt, and clean it if needed, taking care not to damage the fuel fill pipe and other parts.
- When installing the fuel tank protector, make sure to insert it into the clip (I) in the direction shown.
