IMT Actuator Replacement

Remove the engine cover (see step 7 on ENGINE REMOVAL ).
Disconnect the IMT actuator connector (A).

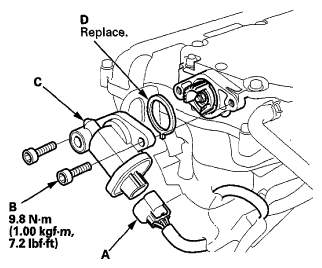

Fig 1: IMT Actuator, Connector And Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts (B) and the IMT actuator (C).
Install the parts in the reverse order of removal with a new O-ring (D).
