ELD Replacement

Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
Remove the upper cover (A), then remove the two positive (+) terminals (B).

Fig 1: ELD Upper Cover With Positive Terminals And Fuses And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the fuses (C and D).
Remove the main under-hood fuse box (A) from the bracket.

Fig 2: Identifying ELD Lower Cover With Under-Hood Fuse Box
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the lower cover (B).
Release the two lock tabs (A), then pull the ELD (B) out from the main under-hood fuse box (C).
NOTE: Take care not to damage wire harness.

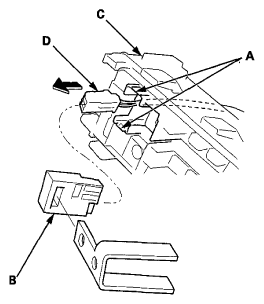

Fig 3: Disconnecting ELD 3P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the ELD 3P connector (D).
Install the parts in the reverse order of removal.
Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
