EVAP Canister Vent Shut Valve Replacement

  1. Remove the EVAP canister cover (see step  2 ).
  2. Disconnect the EVAP canister vent shut valve 2P connector (A).

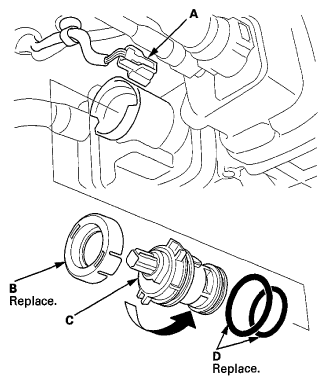

    Fig 1: Removing EVAP Canister Vent Shut Valve
    G06964055Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the cap (B).
  4. Remove the EVAP canister vent shut valve (C).
  5. Install the parts in the reverse order of removal with new O-rings (D) and a new cap.
    NOTE: Do not coat the O-rings with oil.
