Subframe: Service and Repair

Subframe Replacement

Special Tools Required

- Subframe Alignment Pin 070AG-SJAA10S

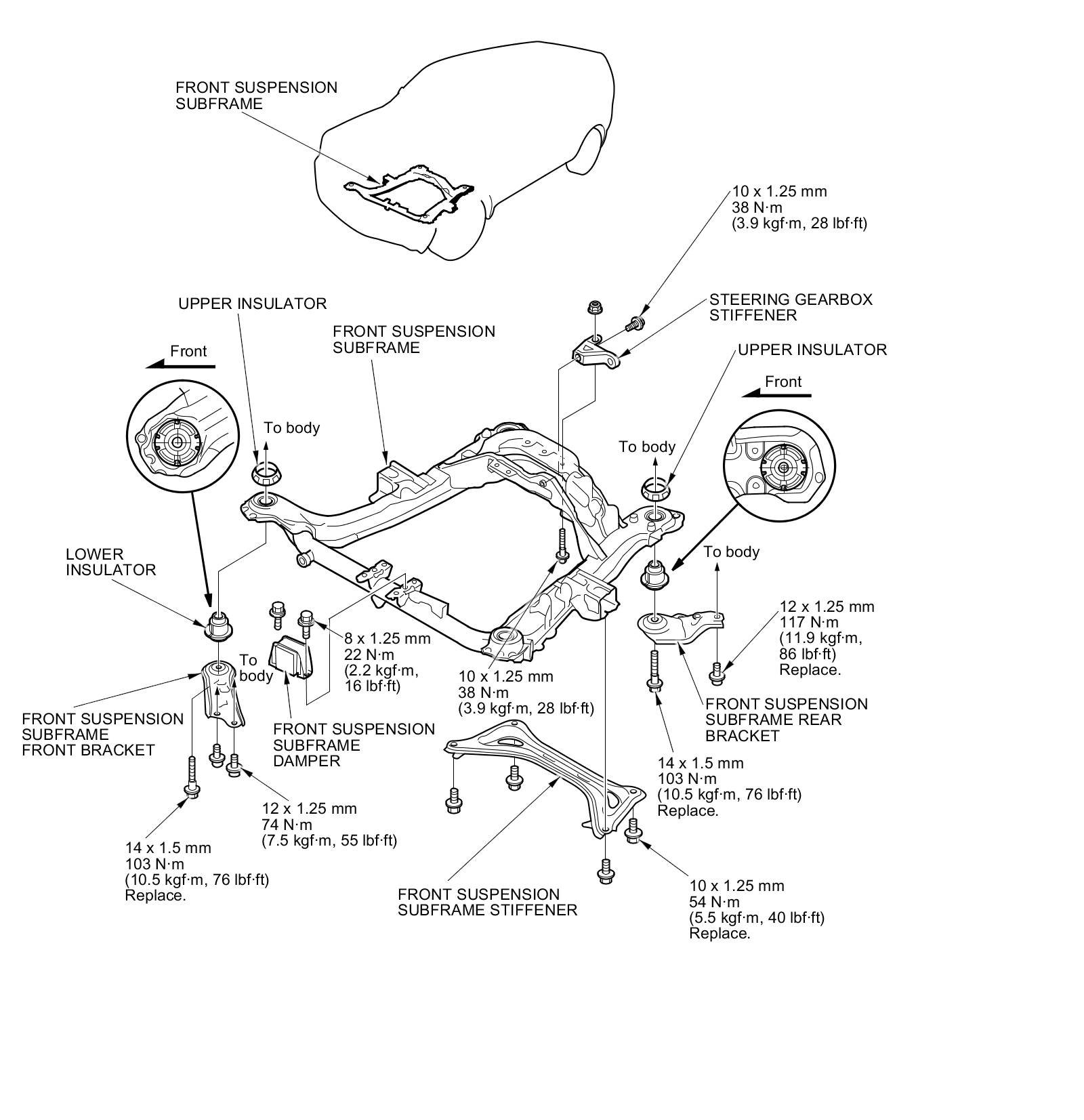

Front Subframe Torque

After removing the subframe mounting bolts and the front subframe stiffener mounting bolts, be sure to replace them with new ones.

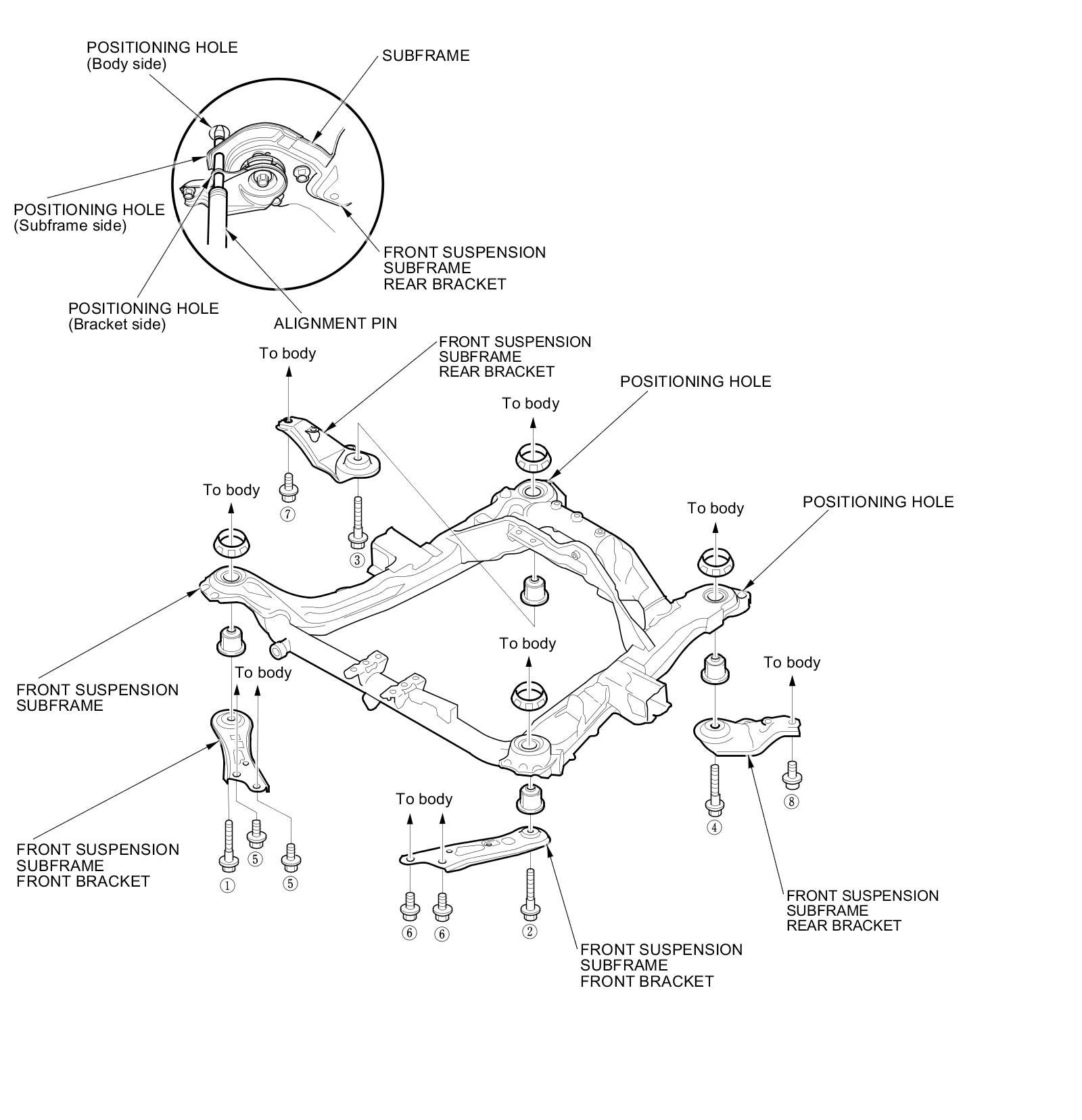

Front Subframe Alignment

NOTE:

- Loosely install new front subframe mounting bolts, then tighten the bolts to the specified torque in the sequence shown.
- After mounting the subframe and brackets loosely, align all of the positioning holes in the subframe, the subframe front bracket, and in the body using a alignment pin as a guide, then tighten the bolts.
- After reinstalling all removed parts, check and adjust the front wheel alignment Service and Repair.

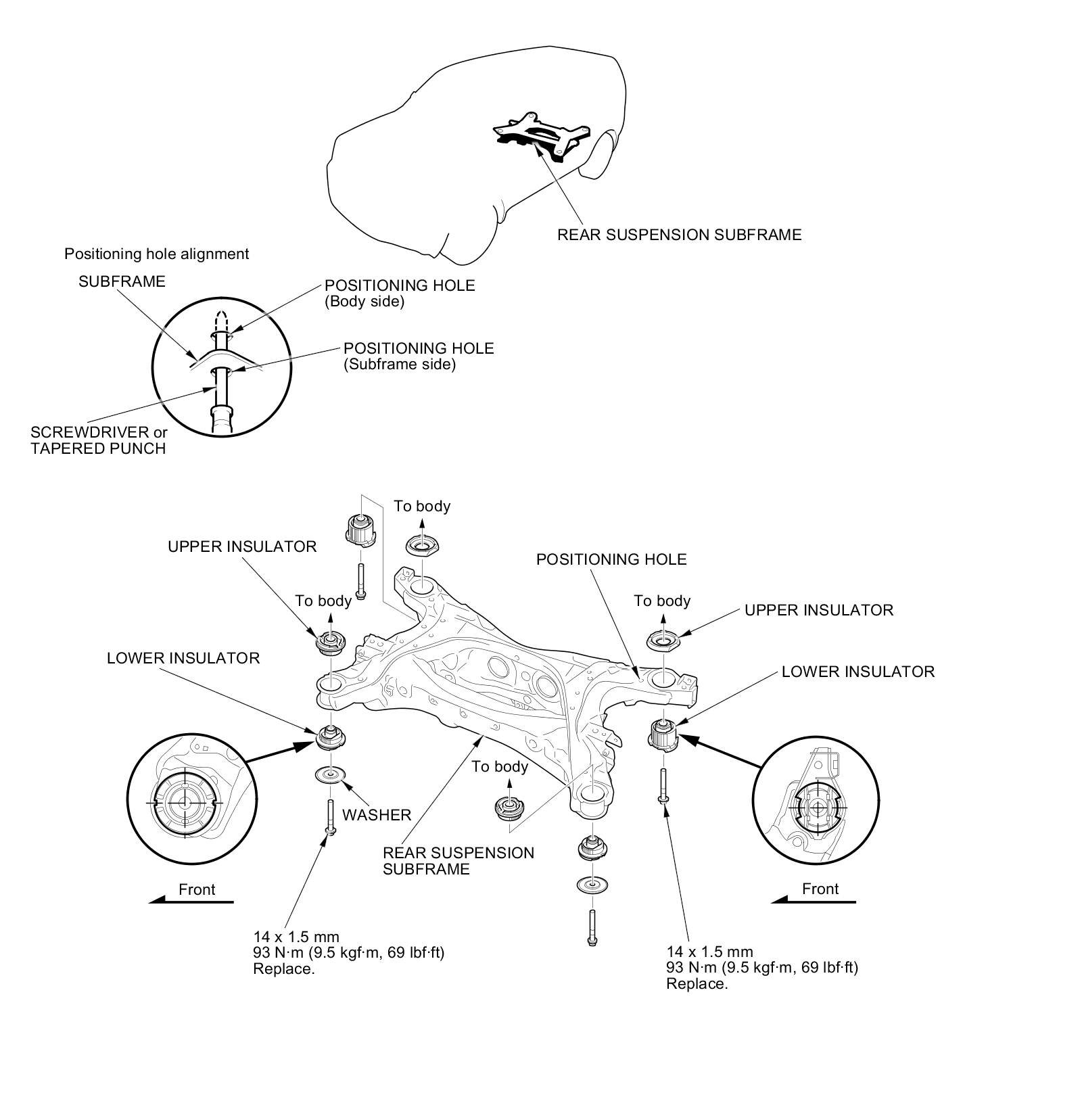

Rear Subframe Torque

NOTE:

- When installing, align both positioning holes in the subframe with the positioning holes in the body using a screwdriver or tapered punch as a guide.
- After removing the subframe mounting bolts, be sure to replace them with new ones.
