Cigarette Lighter Relay

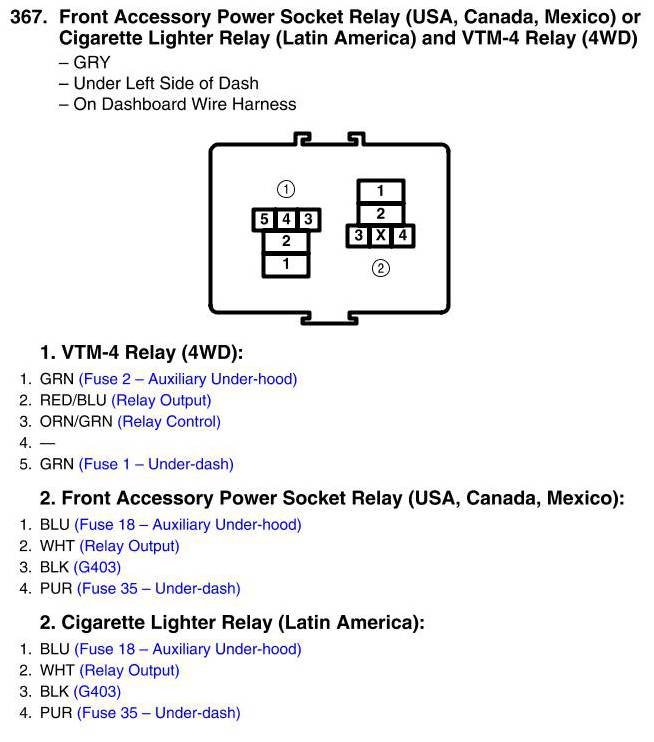

Front Accessory Power Socket Relay (USA, Canada, Mexico) Or Cigarette Lighter Relay (Latin America) And VTM-4 Relay (4WD) Connector View
