Parking And Back-Up Sensor Control Unit Connector View (Parking And Back-Up Sensor System)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

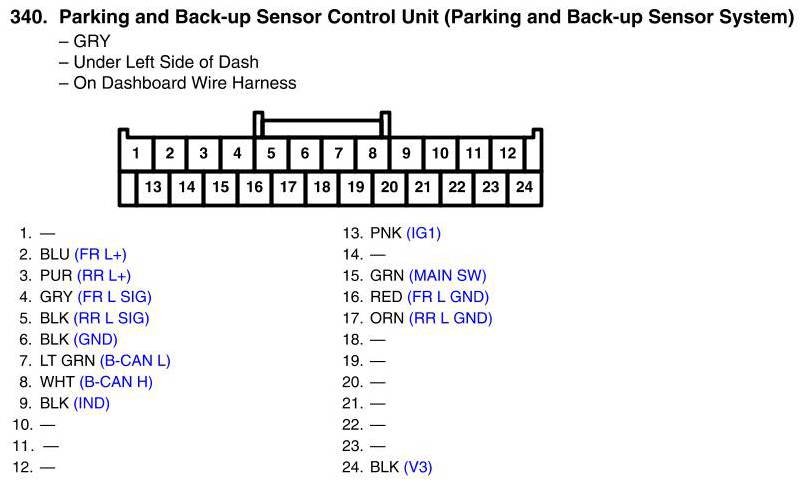

Parking And Back-Up Sensor Control Unit Connector View (Parking And Back-Up Sensor System)
