HVAC Control Unit Removal/Installation

HVAC Control Unit Removal/Installation

1. Remove the audio unit Audio Unit Removal/Installation.

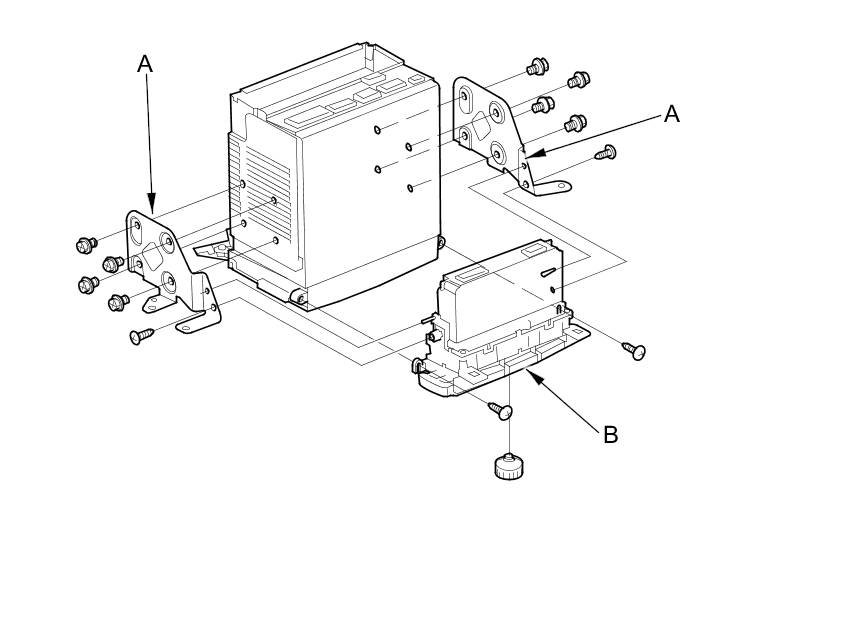

2. Remove the self-tapping screws, bolts, and the brackets (A).





3. Remove the self-tapping screws and separate the audio unit and the HVAC control unit (B).

4. Install the control unit in the reverse order of removal. After installation, operate the various functions to see whether it works properly.

5. Run the self-diagnostic function to confirm that there are no problems in the system.
