Rear Control Panel Removal/Installation

Rear Control Panel Removal/Installation

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

1. Remove the console rear trim Center Console Removal/Installation.

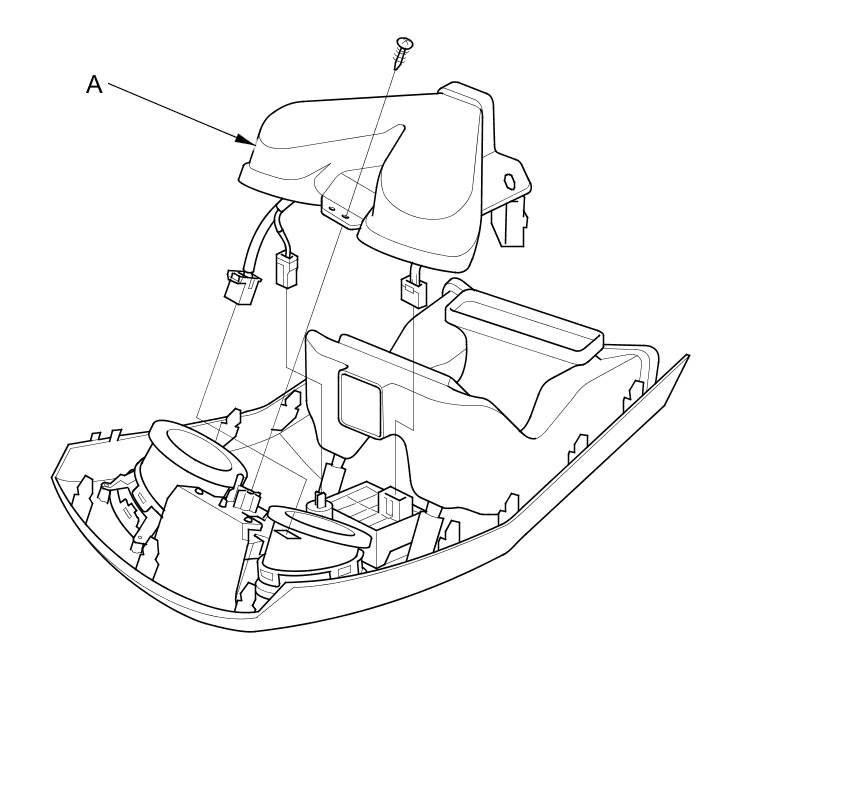

2. Remove the self-tapping screw from the console rear trim, disconnect the connectors and remove the upper duct (A).

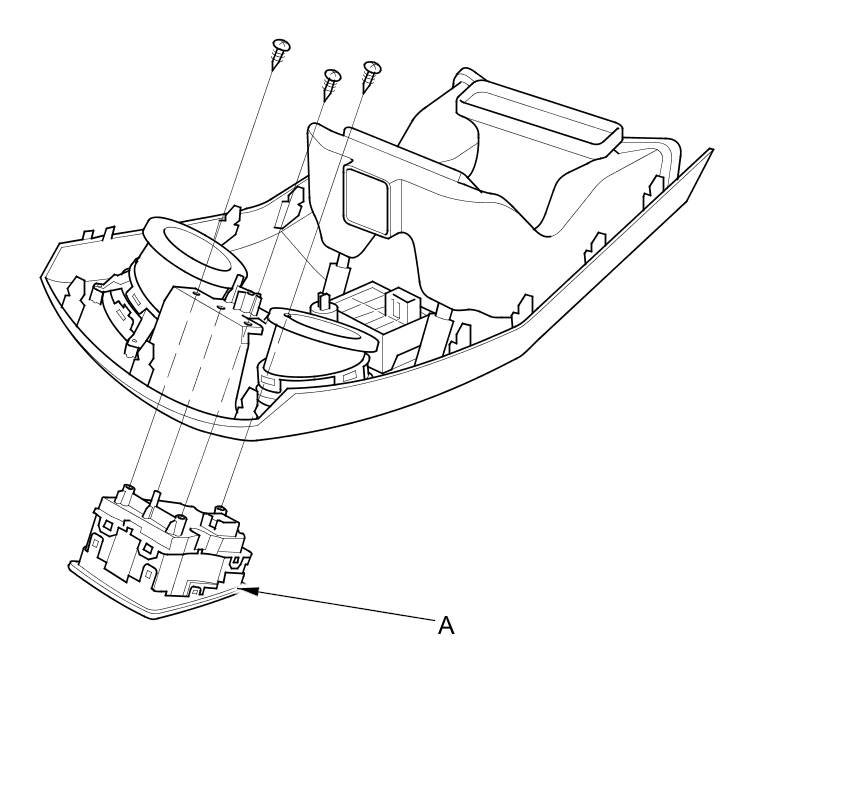

3. Remove the self-tapping screws and the rear control panel (A).






4. Install the control panel in the reverse order of removal. After installation, operate the various functions to see whether it works properly.

5. Run the self-diagnostic function to confirm that there are no problems in the system.
