Knock Sensor: Service and Repair

Knock Sensor Replacement

1. Remove the intake manifold Intake Manifold Removal/Installation.

2. Remove the injector base Injector Base Removal/Installation.

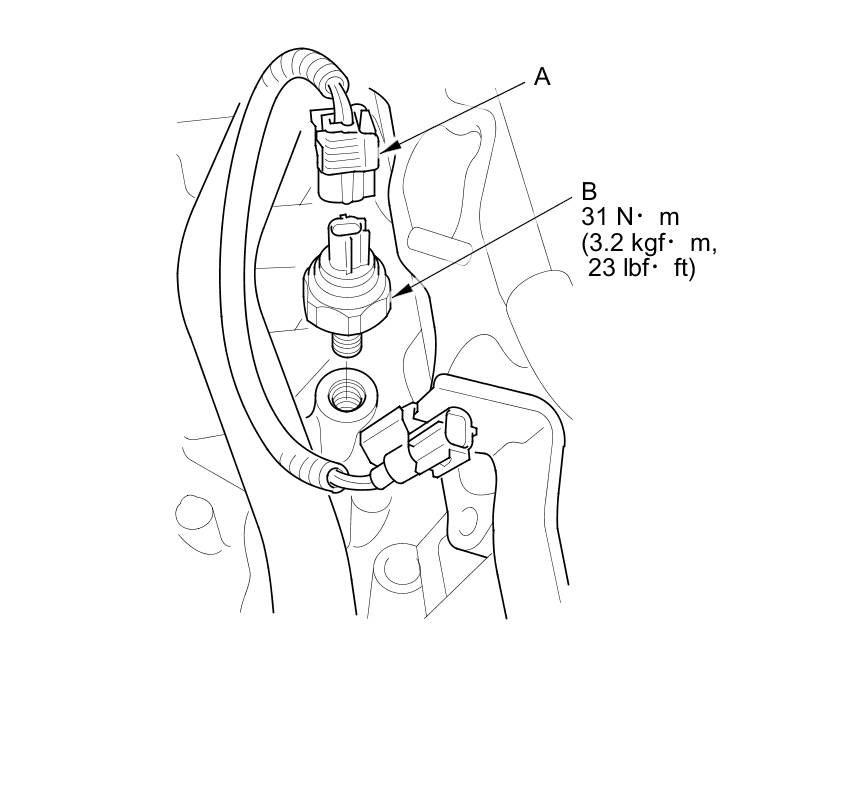

3. Disconnect the knock sensor connector (A).





4. Remove the knock sensor (B).

5. Install the parts in the reverse order of removal.
