Engine Mount Control Unit: Service and Repair

Engine Mount Control Unit Replacement

1. Do the battery terminal disconnection procedure.

2. Remove the passenger's dashboard undercover Passenger's Dashboard Undercover Removal/Installation, and the right kick panel Service and Repair.

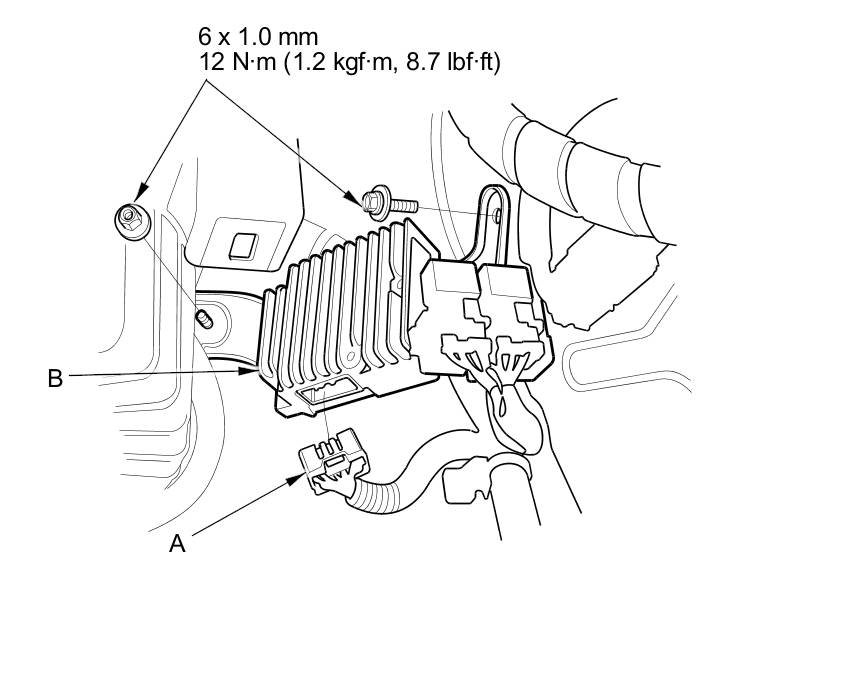

3. Disconnect the engine mount control unit 16P connector (A).





4. Remove the engine mount control unit (B).

5. Install the parts in the reverse order of removal.

6. Do the battery terminal reconnection procedure.
