Torque & Sequence

Cylinder Head

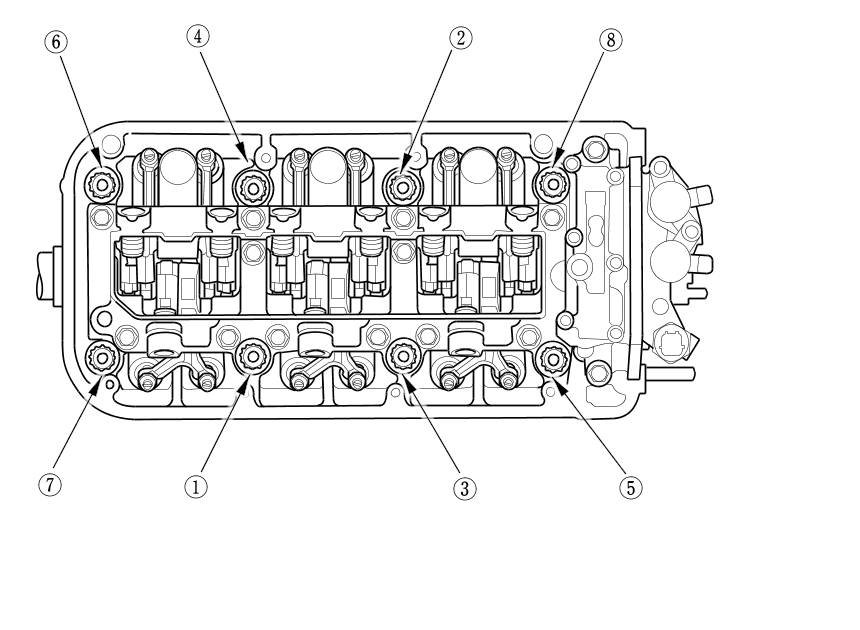

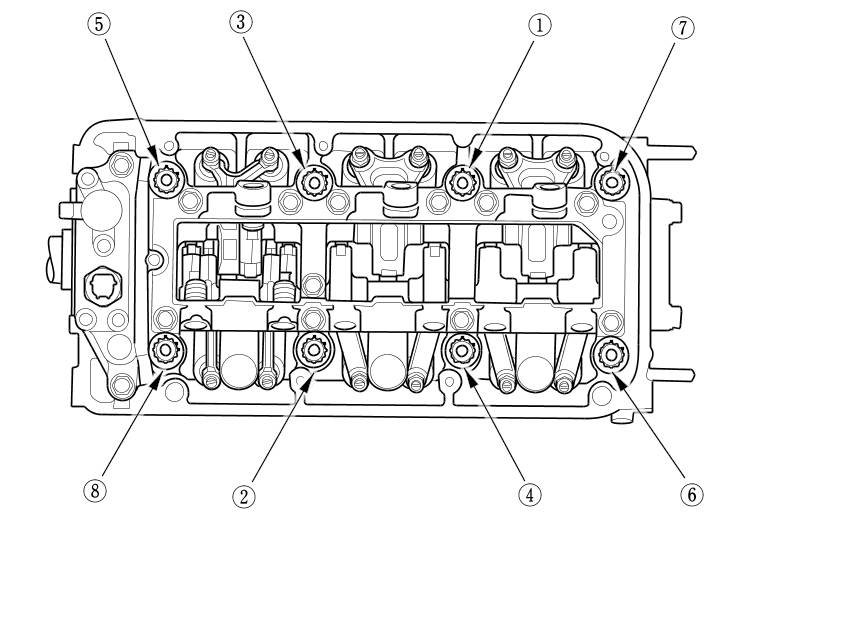

Torque the cylinder head bolts in sequence to 29 Nm (3.0 kg-m, 22 lb-ft) using a beam-type torque wrench. When using a preset click-type torque wrench, be sure to tighten slowly and do not overtighten. If a bolt makes any noise while you are torquing it, loosen the bolt and retighten it from the first step.

Front






Rear

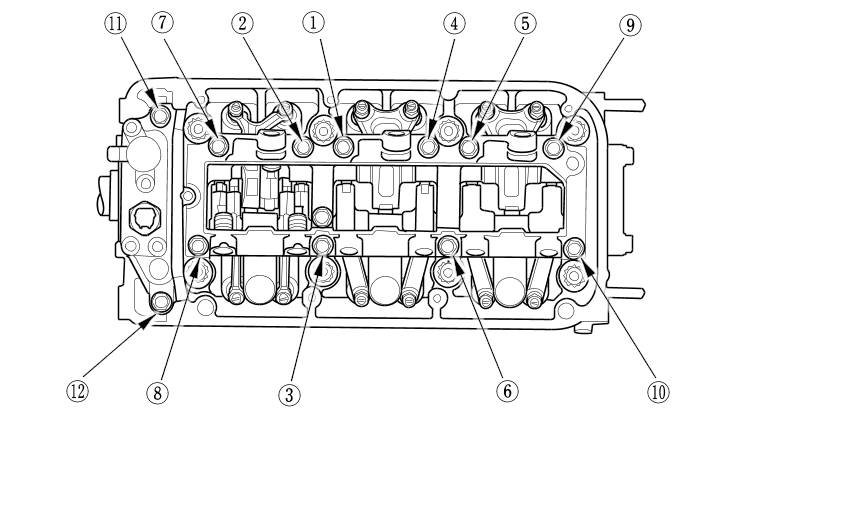

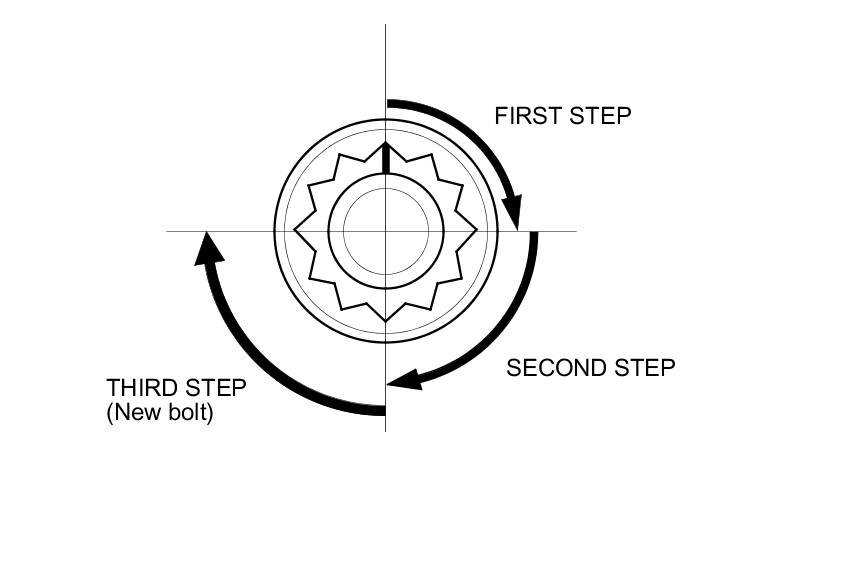

After torquing, tighten all cylinder head bolts in two steps (90 ° per step) using the sequence shown in step 11. If you are using a new cylinder head bolt, tighten the bolt an extra 90 °.

NOTE: Remove the cylinder head bolt if you tightened it beyond the specified angle, and go back to step 8 of the procedure. Do not loosen it back to the specified angle.






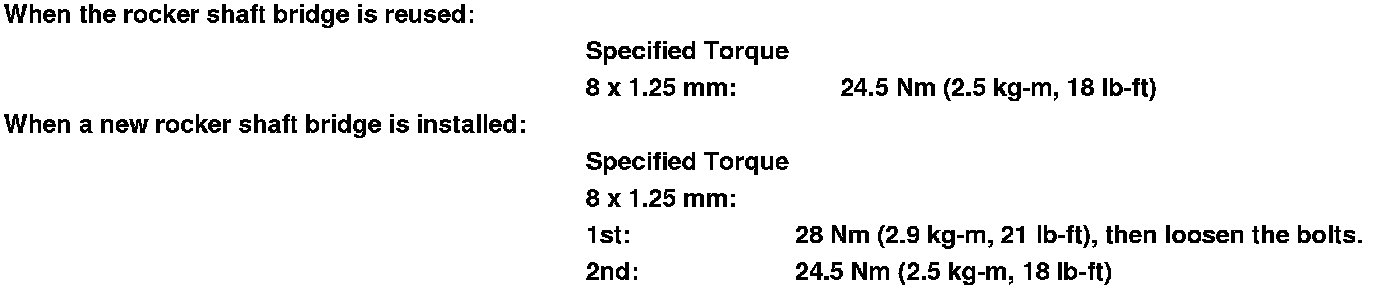

Camshaft Bearing Cap













Intake Manifold Specifications

Camshaft Gear/Sprocket Specifications
